Multidirectional Transfer Cart with Lifting and Tilting Deck

Multidirectional Transfer Cart with Lifting and Tilting Deck

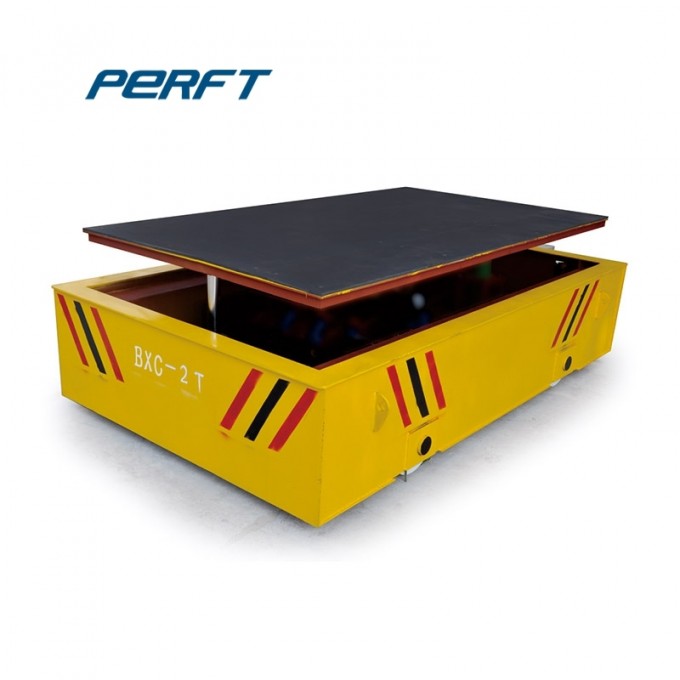

Preview of Transfer Cart with Lifting and Tilting DeckWe offera wide range of Die Handling Products specifically designed for the unique needs of both stamping and molding and transporting heavy die or mold from die storage to the pss line. Thesetransfer cart is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pssing, pssure casting, and engineering plastics, rubber, ceramics and other products of the compssion molding or injectionmolding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.

Application ofTransfer Cart with Lifting and Tilting Deck
PERFECT heavy die transfer trailersare operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cartin the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either oneor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.



Parameter of Transfer Cart with Lifting and Tilting Deck

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.


Other products we offer

Customization of hydraulic lifting platform cart
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-abilityor controlled direction of motion
Customshaped table size to suit yourapplication
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant
