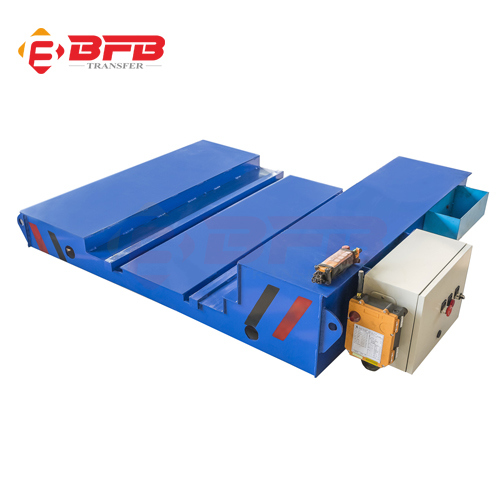

Brief introduction---Rail Transfer Cart with Platform for Steel Factory
This kind of rail transfer cartby safety sliding wire which is can running on the straight,"s" or arc-shaped railways rails,
to warehouse to transfer material or equipment between workshops with the crane accessories. This railtransfercartis
a very popular product in South America market. Our BEFANBY company is the professio
nal manufacturer of railtransfer
cartwith more than 15 years experience in designing and producing.
working principle----Rail Transfer Cart with Platform for Steel Factory
Rail transfer cart is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground
along the wall.It co
ntacts AC 380V sliding wire directly into the AC electrical co
ntrol system of the rail transfer cartto let
in start,stop, go forward and backward and so on. The rail transfer cartgets power from the slider of the safe sliding
line which is moved by the cart's running.
Technical Parameters forRail Transfer Cart with Platform for Steel Factory
| Model | KPC-2t | KPC-20t | KPC-50t | KPC-100t | KPC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Application of Rail Transfer Cart with Platform for Steel Factory
Our rail transfer cartis suitable for various industries,steel mill, transfer steel products such as steel structure, steel
pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil,Painting shops, transfer workpiece into the
painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
Characters of Rail Transfer Cart with Platform for Steel Factory
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·It has no strict requirement for the co
nstruction of the railway
·No limit of running and working hours
·Safe and co
nvenient operation for there is no wire outside the cart
·Adjustable speed
Compo
nents showof Rail Transfer Cart with Platform for Steel Factory
Rail transfe cart is composed of Car f
rame,wheel,sliding wire,gear reducer, motor,electrical control,etc.
Processing Line
Packing&Delivery
a
bout Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of rail transfer cart, as one of the professio
nal manufacturing company, which has a
modernized management team and excellent staff. And our products gets CE, SASO,SGS,ISO certificate and other 8
natio
nal patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico,
USA, Turkey, South Africa, Singapore etc.
Our Certificate show
Our Customer show
Our production application show
Product supply scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>remote radio co
ntrol(im
port or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless
4> Electrical parts (im
ported or made in china)
How to choose the suitable transfer cart?
All of our railtransfer cartall customized as client's requirement, for choose the most suitable transfer cart,please
kindly providing the following information:
Transfer or handling what material/cargo?What capacity do you need?This transfer cartis running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
