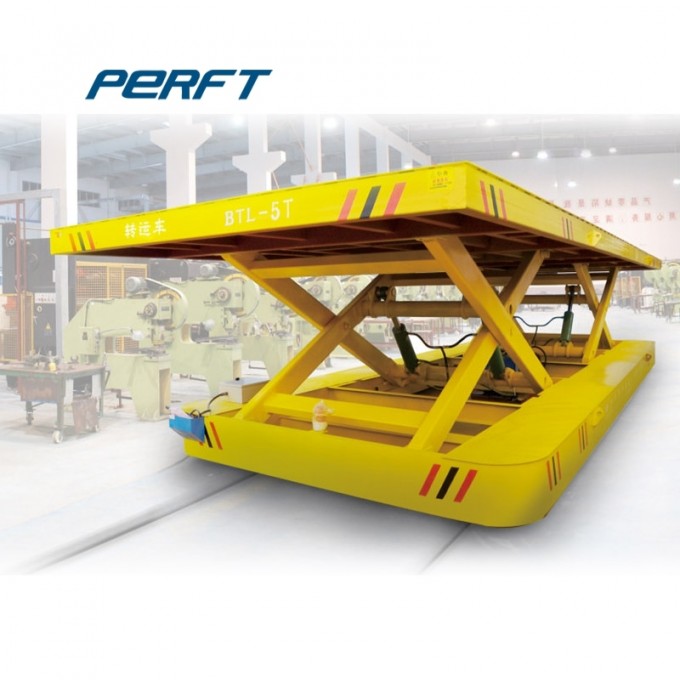

Btl 25t Heavy Cargo Transfer Trolley with Lifting Platform

BTL 25t heavy cargo transfer trolley with lifting platform
IntroductionofHeavy Cargo Transfer Trolley
The line of PERFECTLift Tables includes both "scissor" and "direct lift" designs to meet a wide range of handling requirements of our clients.
As with all PERFECT products, our Lift Tables are designed to meet the specific requirements of each application. The height of our scissor lift tables ranges from 8" to 24" depending on the size and load capacity requirements. And depending of the lift requirements of the unit, the table would be equipped with a single, double or triple arm arrangement.


ApplicationofHeavy Cargo Transfer Trolley
The cable drum Heavy Cargo Transfer Trolley is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).



Working Principle ofHeavy Cargo Transfer Trolley
This Heavy Cargo Transfer Trolley is powered by dragging cable. The power source 380-690v alternating if leaded into electrical control cabinet by cable, which controls the motor to make the cart start, stop, move forward and move backward. Hydraulic lifting system can be mounted on the car to meet the demand for car lifting. The Heavy Cargo Transfer Trolley is suitable for running distance less than 20m, high using frequency.



Parameter ofHeavy Cargo Transfer Trolley

Model		BTL-2t	BTL -20t	BTL -50t	BTL -100t	BTL -150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Recommended Rail Model		P15	P24	P43	QU100	QU100

Customized ofHeavy Cargo Transfer Trolley
PERFECT is specialized in designing and manufacturing of Heavy Cargo Transfer Trolley:
Transfer Cart:Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart:Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer:Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer traileretc.
Cargo Transportation:Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment:Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicleetc.


Production Supply Scope

Product Name	Model	Power Supply Mode	Load Capacity	Running distance	Usage
Rail Transfer Cart	BDG	Conductor Rail	We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client's requirements.	≤70m	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	BXC	Battery		Unlimited
Cable powered Transfer Trolley	BJT	Cable Drum		≤50m
Electric Transfer Cart	BTL	Trailing Cable		≤20m
Busbar Powered Handling Cart	BHX	Busbar		Unlimited
Towed Rail Trailer	BP	Towed by other machine		Unlimited
Steerable Towed Car	BWT	Manually or towed by forklift or other machine	1-150t on cement or steel floor.	Unlimited
Trackless Handling Machine	BWP	Battery		Unlimited

Packaging and Shipping ofHeavy Cargo Transfer Trolley
*For lengthis less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
