Electric Platform Transfer Truck Trolley Applied in Heavy Industry

Electric Platform Transfer Truck Trolley Applied In Heavy Industry

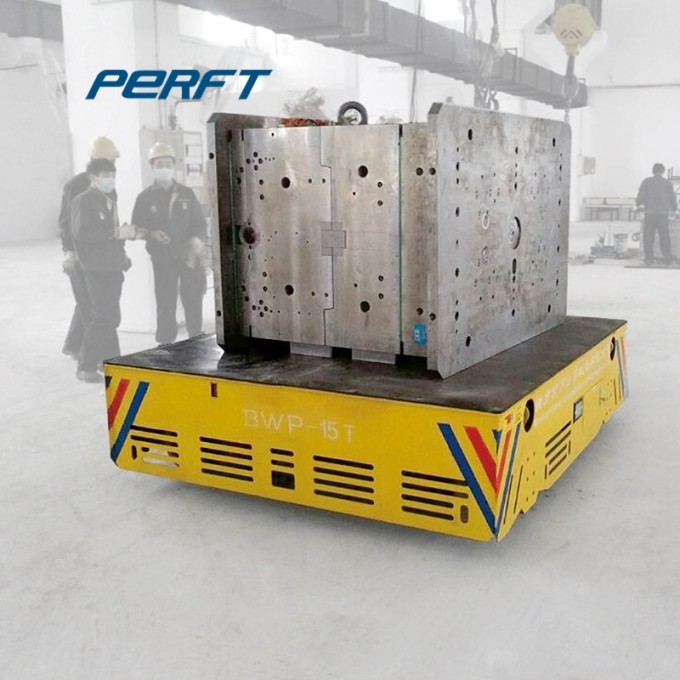

1. Introduction of Transfer Truck TrolleyThe material transfer trolleys are movable platforms used for the horizontal movement of materials, assemblies and other items.And we have the heavy duty, high quality transport car solutions you need. Theyare widely used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet movable machine base. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your.


2. Application ofTransfer Truck Trolley
PERFECT's handling equipments are widely usedin many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied hybrid transfer cartin the world for moving materials inside and outside the plant by electric traction and driving long distances. And also heavy load transport cars are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either oneor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load carts or batteries for long distances.


3. Parameter of Transfer Truck Trolley

Model	BWP-5t		BWP-20t		BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5		20		30	40	50
Ground requirement	Cement floor or Steel plate ground
Table size (mm)	3000*2000		4500*2200		5000*2200	5500*2300	6000*2300
Height of the whole cart (mm)	450		600		650	700	700
Wheel base (mm)	1500		1700		1700	1800	1800
Axles distance (mm)	2500		3900		4300	4800	5200
Turning radius (mm)	2501		3901		4301	4801	5201
Turning type	Turning while driving with no stop
Motor power (KW)	3.5	7		10		12	15
Wheel diameter (mm)	300 (4)	400 (4)		400 (6)		500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15					0-12
Brake principle	Electric magnetic brake
Operation method	With wire or no wire
Charger's installation	Installed on cart					Split-type
Charger's function	Automatic stop for obstacles
Radar control	3-0.3 m, Automatic stop for obstacles
Warning equipment	Sound and light
Other functions	Turning light, night light and power display

4. Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.



5.Other Products We offer


6.Customization of Transfer Truck Trolley
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-abilityor controlled direction of motion
Customshaped table size to suit yourapplication
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant


7. Q&A
1.What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
2. What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
3. How can Transfer Carts be customized?
Please tell us:
Whatload or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
