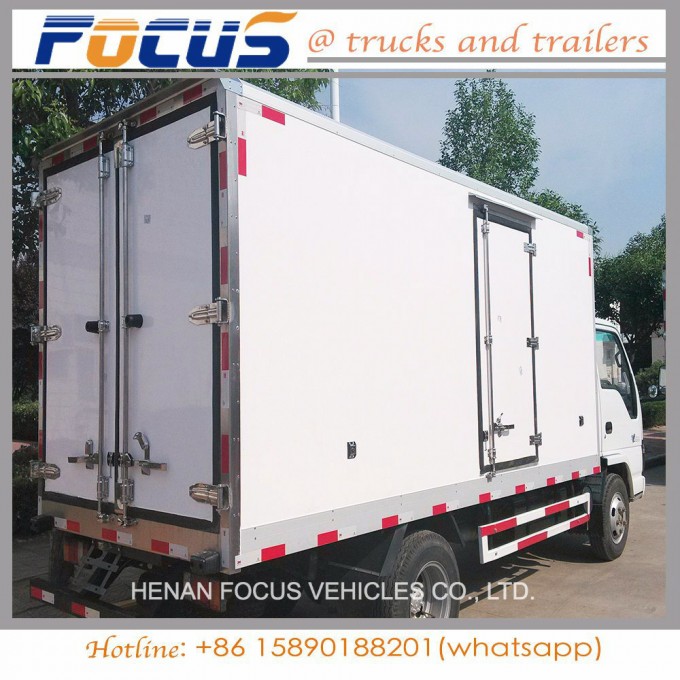

Small reefer truck, refrigerated carrier with Refrigerated cooling Van for Ice cream
Specifications:
SER | ITEM | PARAMETER | UNIT | DATA | REMARK | |
1 | WHOLE VEHICLE | WHOLE MODEL | CLW5040XLCQ4 | |||
MANUFACTURE DATE | 2017 | |||||
OVERALL DEMENSION | MM | 5995×1910×2790 | ||||
CURB WEIGHT | KG | 2850 | ||||
LOADING CAPACITY | KG | 4000 | ||||
MAX GRADABILITY WHEN FULL LOADING | DEG | 32° | ||||
MAX SPEED | KM/H / | 98 | ||||
FRONT/REAR HANGING / | MM | 1015/1620 | ||||
CLOSE/DEPARTURE ANGLE / | DEG | 24/16 | ||||
LEAF SPRING | PCS | 8/6+5 | ||||
DRIVE WHEEL | 4*2 | |||||
2 | CHASSIS | CHASSIS MODEL | QL1040A6HAY (ISUZU) | |||
MANUFACTURER | ISUZU Motors Co.,Ltd. () | |||||
MANUFACTURE DATE | 2017 | |||||
POWER STEERING | Equipped | |||||
WHEELbase | 3360 | |||||
FRONT AXLE | 2T | |||||
REAR AXLE | 4T | |||||
TYRE SPECIFICATION | 7.00R-16 | |||||
NO OF TYRES | PCS | 6+1 spare tyre | ||||
3 | ENGINE | ENGINE MODEL | 4KH1CN5LS | |||
MANUFACTER | ISUZU Diesel Motors Co.,Ltd. () | |||||
ENGINE HORSEPOWER | PS | 98 | ||||
DISPLACEMENT | ML | 2999 | ||||
EMISSION STANDARD |
| |||||
ENGINE DETAILS MORE | 4 cylinders | |||||
Electrical injection | ||||||
Watercooled | ||||||
4 | GEARBOX | NO OF GEARS | 5 forward gears and 1 reverse | |||
MODEL | MSB OF ISUZU | |||||
RATIO | 5.594/2.814/1.66/1/0.794/R5.334 | |||||
5 | REFRIGERATOR BOX | BODY DIMENSION | MM | 4100×1740×1750 | ||
THICKNESS | MM | Polyurethene foam :80mm Fiberglass :1.4mm Plywood:18mm | ||||
TEMPERATURE | ºC | -18 | ||||
UNIT | F450 | |||||
MATIRAL OF DOORframe | Stainless steel | |||||
MATERAIL | In the middle of Polyurethene foam,Exterior and inner side: fiberglass | |||||
6 | CAB | MODEL | ISUZU | |||
STEERING | Left hand drive | |||||
TYPE | Flat proof | |||||
SEATS | 3 | |||||
ABS | Equipped | |||||
A/C | Equipped | |||||
OTHERS | With FM RADIO,CD,Spare tire stents and so on | |||||
Note:1.All specification are our common design.Some of them can be changed according to your requirement. 2.The information contained in this message be privileged and confidential. 3.Any distribution of this message, in any form, is strictly prohibited |
Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
Why Choose Focus vehicles?
--WHAT ARE OUR ADVANTAGES ?
**Competitive price--We work as the leading dealers of Various leading China TRUCKS and SEMI TRAILERS, and Construction machinery manufactures/factories, and are treated with best dealership prices every year. From comparison and feedbacks from clients, Our price is more competitive than others even manufacturers/ factories.
**Ouick Response--Our team is consisted of agroup of dilligent and enterprising people.Working 24/7 to respond client inquires and question all the time. Most problems can be solved within 12 hours.
**Fast Delivery--Normally it will take more than 30 days for manufacturers/factories to produce the ordered machine, while we have avariety of resources, locally and nation widely, to receive machines timely manner.
--WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can work on T/T term or L/C term.
**On T/T term, 30% downpayment is required in advance, and 70% balance shall be settled before shipment, or against the copy of origial B/L for old clients.
**On L/C term, a100% Irrevocable L/C without "soft clauses" can be accepted. Please seek the advice from the individual sales manager whom you work with.
--HOW LONG WILL OUR PRICE BE VALID?
We are atender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year, We only adjust our price based on two situations:
** The rate of USD: RMB varies significantly according to the international currency exchange rates.
** Manufacturers/Factories adjusted the trucks and machinery price, becaue ofthe increasing labor cost, and raw material cost.
--WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship trucks, trailers and machinery by various transportation tools.
**For 90% of our shipment would go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. either by container or RoRo/Bulk shipment.
**For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., We can ship trucks trailers, machinery by Road or Railway.
**For light spare parts in urgent demand, we can ship it by international courier service. such as DHL, UPS, TNT, or Fedex.
