Affordable and Economic Modified Expandable Container House

Product introduction

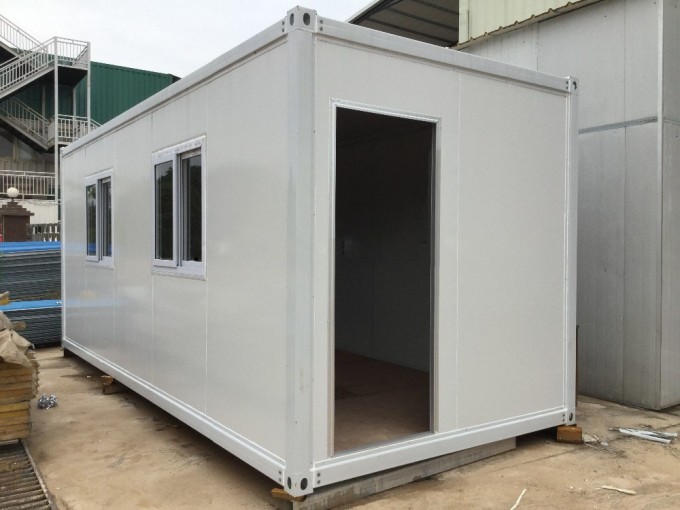

Container house refers to ahouse with windows and doors, reconstructed alittle with containers as basicmaterials. Such container houses are commonly found in the construction sites and used as dormitories for workers. In addition, they are used as houses for rent because they are sturdy, durable and easy to build. Therefore, container house is also called the resident container.

Product features:
1.Connection method: Welding, very strong, could be transported only as containers.
2. Anti-distortion, earthquake and wind
3. Steel structure service life over 20 years
4. Layout could be changed according to requirements
5. Flexible in color choice
6.Quick production and easy to install
Product specification
1.6.058mX2.438mX2.85m
2.Panel types available:75mm EPS, 50MM EPS
3.with door( 900mmX2000mm) and window (950mmX1200mm)
4. 4set can be loaded in on 40HC container

Type	External			Internal			Weight (approx. specifications)
	Length	Width	Height	Length	Width	Height	BM	BU	SU
10'	2989	2435	2591 2700 2896	2795	2240	2275 2383 2580	1150 1350	1200 1200	1450 1550
16'	4885	2435	2591 2700 2896	4690	2240	2275 2383 2580	1600 1750	1550 1600
20'	6055	2435	2591 2700 2896	5860	2240	2275 2383 2580	1950 2000	1750 1800	2450 2550
24'	7335	2435	2591 2700 2896	7140	2240	2275 2383 2580	2300 2400	2050 2150
30'	9120	2435	2591 2700 2896	8925	2240	2275 2383 2580	2550 2800	2450 2500

1.2 Insulation

Component	Insulation type	Thickness	U-value (W/m²K)*
Roof
CN-31	MW	100	0.359
CN-31	MW	140	0.233
CN-11	PU	100	0.198
CN-11	PU	140	0.145
Wall element
CN-31	MW	60	0.574
CN-31	MW	100	0.348
CN-11	PU	60	0.380
CN-11	PU	110	0.210
Floor
CN-31	MW	80	0.548
CN-31 CN-11	EPS	80	0.364
CN-11	PU	80	0.196
Window
	standard insulated window 1/2	4/16/4 mm	2.90
	window insulation with gas filling	4/16/4 mm	1.10
External door
	polystyrene	40 mm	1.4
