China Flat Pack Prefab Container House Supplier

Packaging &Delivery
Packaging Details:
Standard Packing
Delivery Detail:7-21 days

PRODUCTT INFORMATION

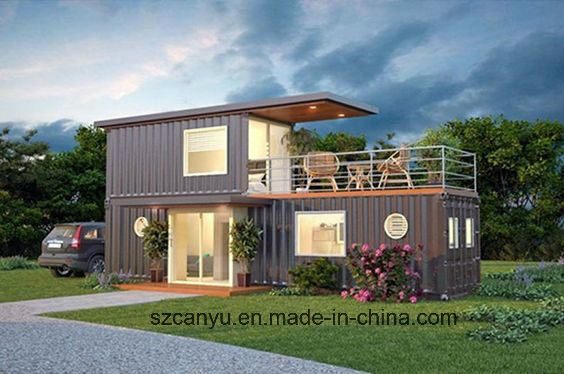

Container house refers to ahouse with windows and doors, reconstructed alittle with containers as basic materials.
Such container houses are commonly found in the construction sites and used as dormitories for workers. In addition,
they are used as houses for rent because they are sturdy, durable and easy to build.
Therefore, container house is also called the resident container.
Product features:
1.Connection method: Welding, very strong, could be transported only as containers.
2. Anti-distortion, earthquake and wind
3. Steel structure service life over 20 years
4. Layout could be changed according to requirements
5. Flexible in color choice
6.Quick production and easy to install
Product specification
1.6.058mX2.438mX2.85m
2.Panel types available:75mm EPS, 50MM EPS
3.with door( 900mmX2000mm) and window (950mmX1200mm)
4. 4set can be loaded in on 40HC container

1. Flexible size and combination:freely at length, width and height.

2. Simple installation:4 people /day install more than 4sets.

3. Good performance in water proof solution.

4. Environment materials, it can be assembled and disassembled several times.

5. Container house is movable and portable by crane .

6.Economic transportation:Bulk packaging, 15sets/40HC .
Flexible container housecan be worker camp/accommodation/site office/kitchen/toilet and so on.
If you have your own idea, please let us know the size or plan, we will design for you!

1	Container house dimension	2.439m(W)x6.058m(L)x2.9m(H)
2	Steel structure	Q235B,Gray white
3	Roof	Gray white 50mm EPS(Polystyrene)Sandwich panel
4	Floor	Plywood +PVC carpet
5	Window	PVC double sliding window
6	External door	PVC double sliding door
7	Wall	Gray white 50mm EPS(Polystyrene)Sandwich panel
8	Corner castings	ISO

Product Description:
1. The roof and walls are using one integral piece of FRP (fiberglass reinforced plastic) sandwich panel, well linked with the ceiling, wall and floor;
2. The FRP insulated structures are with excellent water-tolerant performance and thermal insulation property.
4. Mobile and flexible communication, convenience transportation, strong weather ability, applicable to remote areas, mountains, deserts, and other scenic locations.
5. Shelter has strong anti-attack, with the ability of anti-salt spray atmosphere; Built-in air-conditioning temperature to adapt to awide range of base station delay aging and prolong life, save labor costs.

Features:
1. Seamless surface, tidy and clean appearance, easy maintenance.
2. High strength, light weight, aging resistant, products have long service life up to 20 years.
3. Easy assembled and disassembled with simple tools.
4. Waterproof, soundproof, shockproof, heat insulated, anti-corrosion, environmental friendly.
5. Easy transportation, they are suitable for several modes such as road, rail, sea and air.

Certificates: ISO, SGS

Optional:
1. Generally we make 20ft, 40ft sizes, combination is also available. Size can be adjusted basing on the standard.
2. Wall thickness: 50mm/75mm/100mm, according to specific climate conditions
3. EPS, PU, Rock wool insulation
4. FRP sandwich panels and thermal insulation as main materials, together with steel frame and other materials
5. PVC vinyl, bamboo plywood, wooden floor, carpet, ceramic tiles flooring system etc.
6. Sliding window, European style window with aluminum frame or PVC frame
7. FRP sandwich panel door, sliding door, colored steel sandwich panel door, steel door, wooden door, etc.
8. Colorful painting, wall cladding for outer decoration
9. Electricity and water plumbing system can provided
