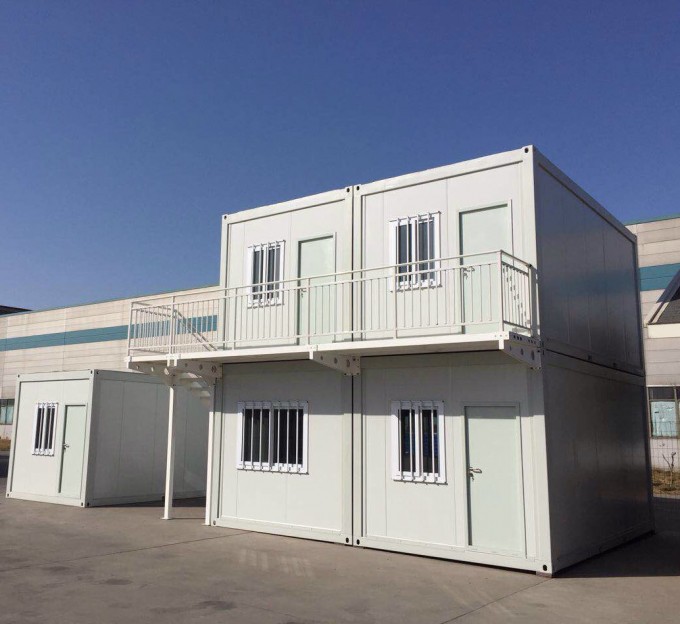

Modified 3 Meter High Modular Flat Pack Container House

Modified 3 Meter High Modular Flat Pack Container House

1. Style of Modular Prefab House:

Style: (single layer)single slope, (single layer)double slope, (double layer)single slope, (double layer)double slope.

2.The Benefits of Modular Prefab House

Perfectfor modular/pfab site offices,cabins,warehouse,villa,toliet,shop,hotel,camp,office
Efficient,low costdesigns that can becustomizedfor end user requirements
Easyfor low skilled workers to assemble
Thelight steel framestructure is strong andreliable
Many modular homes can bestackedandlinkedtogether to createmore space
Neat inside: plumbing and wires are hidden into the sandwich panel


3. SpecificationofSteelWorks:
a. Material:Cold-rolledsteelprofilewithhotdippedgalvanizedfinishes
b. Manufactureofjointplate:Usingsteelplatewelded.Hot-dipgalvanizedafteradjustment.
c. Columnconnection:UsingM12toconnectcolumnwithjointplates.
d. Roofbeamconnection:UsingM12hightensileboltandnuttoconnectroofbeamandjointplates.
e. Bracing:Bracingmadewiththreadtappingandhot-dippedgalvanizingfinishes.
f. Mainelementsandtypicalconnectiondetails:

4.K-home color steel panel material type:

Polystyrene color steel sandwich panels
Rock wool color steel sandwich panels
Polyurethane color steel sandwich panels
Monolayer color steel
metal decorate insulation board have been baking painted by polyester paint (or Fluorocarbon paint), then combined with engraved aluminum zinc alloy steel plate, polyurethane insulation and glass fiber. The board surface could be made with marble, ceramic tile, Cultured stone, Red Wood Grain to get different artistic effects. Some new material such as real stone paint or sandstone have been also very popular for wall decoration.

5. Specification:

No.	Sort	Name	Specification
1	Specification	length	According to clients'requirement.
2		Width	According to clients'requirement.
3		Ridge height	According to clients'requirement.
4		Inside height	According to clients'requirement.
5	Standard accessory	Wall Panel	75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
6		Roof Panel	50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k.
7		Door(D-1)	Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness
8		Door(D-2)	EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	Color steel sliding window with dimension of 1100mmx800mm,vertically sliding window or horizontally sliding window
10		Window(W-2)	Color steel sliding window with dimension of 1100mmx400mm,vertically sliding window or horizontally sliding window ,
13		Channel beams	material:Q235. Painted
14		Column	material:Q235, Galvanized
15		Roof beam	The trusses are composed of Q235 steel , Galvanized
17	Option	Elevated ceiling	Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel
18		Elevated floor	Steel structure with 14mm plywood
19		Decorative floor	PVC, laminated or ceramic tile
20		Drainage system	Provided plan, design and construction
21		Electric system	Provided plan, design and construction
22	Technical parameter	Bearing load	50kg/m2
23		Wind pssure:	0.5KN/M2
24		Fire proof	B2 grade
25		Temperature resistant	-15--50
26		Earthquake resistant	8-magnitude earthquake

Advantages:

1.easyconstruction

Constructionisconvenient,quick,laborsaving,notonlyreducestheworkers'onsiteoperationprocedureandtimebutalsoreducesthecomphensivecost.Forexteriorwallrenovation,treatmentofbaseisnolongerneeded,itcanbedirectlyfixedontheoriginalwall.Itscostislessthananyproductofthesamekindincurrentbuildingmaterialmarket.

2.Significantenergy savingeffect
"Baikal"sandwichpanelintegrationsystemismainlythefollowingfourkeyenergysavingtechnology:aspecialaluminumzincplate,rigidpolyurethanefoam,reflectivefilm,airlayer.The"Baikalsandwichpanel"substrateusingaluminumzincplatethickness0.27to0.30mm,surfacebypssurebalanceprincipleoftheenhancementlayerstrengthgreatly,butalsoimprovesthedecorativeeffect,finishescanbepssedintoavarietyofdifferentstylesoftexture,cansatisfythedifferentgradesofdecorativeneeds,enhancethebuildingfacadeimage,toinjectanewvitalitytheappearanceofthebuilding.Moreeffectivelysavetheenergyreuse.(aluminumzincplatetheoryoflifeformorethan45years,andtherecoveryratewas99.9%.).

3.Strongerdecorativeeffectandmoreoptions:
Inordertoprovidecustomerswithmorechoicesandtogivemorespaceforarchitecturaldesign,thecompanyintroducedoverahundredkindsofreliefpatternsmatchingwithdifferentcolors.Luxuriousandbeautifuldecorativeeffecthighlightstheclassandgradeoftheconstruction.Dismountingmethodissimpleandflexible,makingthereplacementofthemetopeeasy.wecanalsomakecertaincolorascustomersrequired.Combinationofdifferentpatternsandcolorsformstheinventiveandchangefulconstructionstyle.

4.Bewidelyused:
Applicationofmetalexteriorwallpanelscanbewidelyusedinmunicipalconstruction,residentialapartments,villas,gardens,thetransformationofoldbuildings,theguardpostandmanyotherengineeringfields.Thematerialissuitableforthenewmasonrystructure,framestructure,steelstructure,lightbodyhousingandothertypesofbuildings;It'salsosuitableforoldhouses'reconstructionofdecorationandenergysaving,anddecorationofindoorandoutdoor.metalexteriorwallpanelisgoingtobethefirstchoiceinthewallbuildingmaterialsmarket.

Thanks for your patience, any questions, please contact us!
