| Introduction: Container houses can significantly shorten the construction period, more flexibility and mobility. Safer than traditional construction, quieter, more environmentally friendly and effective to ensure the stability and continuity of quality. Provides greater flexibility to the architectural design. Usage of Container house 1. Living room (We can provide also the bed and other furniture.) 2. Office(Hight quality furniture is available.) 3. Kitchen(Hight quality cabinet, cooking appliances, etc.) 4. Cold storage room - Well sealed and 98% cold air kept in the house. 5. Public shower room. 6. Shower rooms in one 20FT contaienr house 7. Toilet |

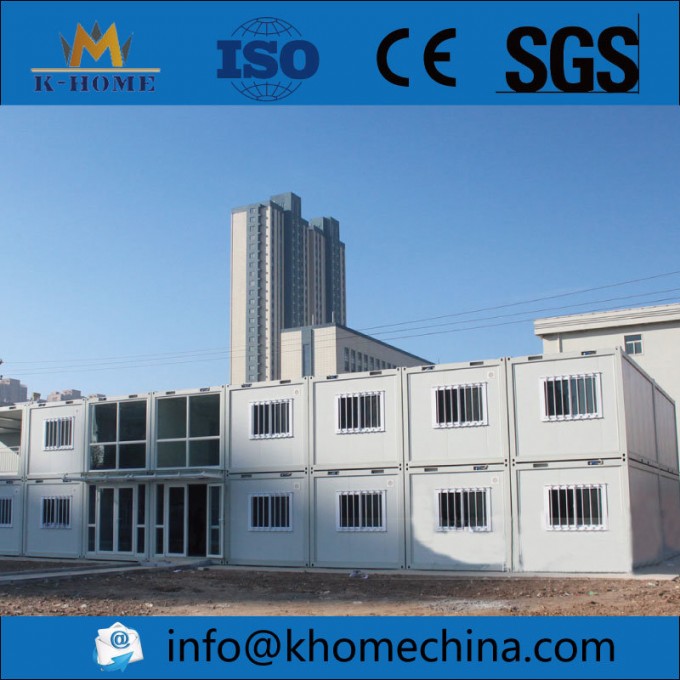

| Features: 1. Prefabrication, easy to install and disassemble. 2. Precision works, long life-span up to 20 years for use. 3. Lightness, easy to transport and relocate. 4. Using several times and recycling, economy and environment friendly. 5. High strength and stiffness, high weight bearing. 6. Waterproof and fireproof. 7. Antiseptic and damp proofing. 8. Sound insulation and heat insulation. Two Storey Mobile Modular Container House For Office |
| Specifications: | ||||
No. | Sort | Name | Specification | |
1 | Specification | length | According to clients' requirement | |
2 | Width | According to clients' requirement | ||
3 | Ridge height | According to clients' requirement | ||
4 | Inside height | According to clients' requirement | ||
5 | Standard accessory | Wall Panel | EPS sandwich panel | 75mm |
color steel sheet | 0.42mm | |||
density of polystyrene foam (EPS sandwich panel) | 12kg/m3 | |||
HeatInsulated coefficient | 0.041w/m.k | |||
Heat transfer coefficient | 0.663w/.k | |||
6 | Roof Panel | EPS sandwich panel | 50mm | |
Color steel sheet | 0.35mm -0.42mm | |||
Density of polystyrene foam | 12kg/m3 | |||
Heat Insulatedcoefficient | 0.041w/m.k | |||
Heat transfer coefficient | 0.553w/.k | |||
7 | Door(D-1) | Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness. | ||
8 | Door(D-2) | EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | ||
9 | Window(W-1) | Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window. | ||
10 | Window(W-2) | Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window. | ||
11 | Channel beams | Material: Q235. Painted | ||
12 | Column | Material: Q235, Galvanized | ||
13 | Roof beam | The Channel beams are composed of Q235 steel , Galvanized | ||
14 | Option | Elevated ceiling | Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel | |
15 | Elevated floor | Steel structure with 14mm plywood | ||
16 | Decorative floor | PVC, laminated or ceramic tile | ||
17 | Drainage system | Provided plan, design and construction | ||
18 | Electric system | Provided plan, design and construction | ||
19 | Technical parameter | Bearing load | 50kg/m2 | |
20 | Wind pssure: | 0.5KN/M2 | ||
21 | Fire proof | B2 grade | ||
22 | Temperature resistant | -15--50 | ||
23 | Earthquake resistant | 8 magnitude earthquake | ||
