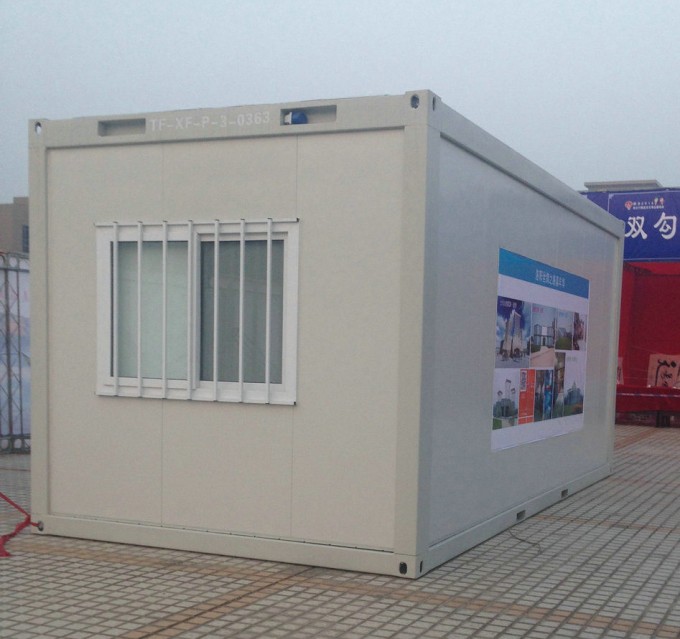

Custom Made Flat Pack Living Container Modular Home for Bathroom

Steel structure EPS/PU sandwich panel pbuilt container home

Introduction:
Container houses can significantly shorten the construction period, more flexibility and mobility. Safer than traditional construction, quieter, more environmentally friendly and effective to ensure the stability and continuity of quality. Provides greater flexibility to the architectural design.

Usage of Container house
1.Living room (We can provide also the bed and other furniture.)
2.Office(Hight quality furniture is available)
3.Kitchen(Hight quality cabinet,cooking appliances etc)
4.Cold storage room - Well sealed 98% cold air kept in the house.
5.Public shower room
6 shower rooms in one 20FT contaienr house
7.Toilet


Features:
1. Prefabrication, easy to install and disassemble
2. Precision works, long life-span up to 20 years for use
3. Lightness, easy to transport and relocate
4. Using several times and recycling, economy and environment friendly
5. High strength and stiffness, high weight bearing
6. Waterproof and fireproof
7. Antiseptic and damp proofing
8. Sound insulation and heat insulation

Specifications:

No.	Sort	Name	Specification
1	Specification	length	According to clients' requirement.
2		Width	According to clients' requirement.
3		Ridge height	According to clients' requirement.
4		Inside height	According to clients' requirement.
5	Standard accessory	Wall Panel	75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
6		Roof Panel	50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k.
7		Door(D-1)	Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness
8		Door(D-2)	EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window
10		Window(W-2)	Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window ,
13		Channel beams	material:Q235. Painted
14		Column	material:Q235, Galvanized
15		Roof beam	The trusses are composed of Q235 steel , Galvanized
17	Option	Elevated ceiling	Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel
18		Elevated floor	Steel structure with 14mm plywood
19		Decorative floor	PVC, laminated or ceramic tile
20		Drainage system	Provided plan, design and construction
21		Electric system	Provided plan, design and construction
22	Technical parameter	Bearing load	50kg/m2
23		Wind pssure:	0.5KN/M2
24		Fire proof	B2 grade
25		Temperature resistant	-15--50
26		Earthquake resistant	8 magnitude earthquake

Is it fire resistant?	PU sandwich panel is fire resistant, but EPS is not.
Is it sound-proof?	Both of PU and EPS sandwich panel are sound - proof.
What is the density of the PU/EPS?	Normally EPS is 12kg/m3, and PU is 38kg/m3.
What is the grade of the PU?	B-class of fireproofing.
What thickness of the PU/EPS can you provide?	Typically are 50mm, 75mm, and 100mm of EPS sandwich panel, 40mm, 50mm, 75mm and 100mm of PU sandwich panel.
What is the width of the sandwich panel?	EPS sandwich panel: 970mm for roof, and 950mm for wall. PU sandwich panel: 950mm for both roof and wall.
Is the PU injected or glued?	Inject
How to load would be most efficient?	Make the sandwich panel to be full length of the container.
How to pack?	In order to well loaded to save the space, normally it is without packing.
What is the delivery time?	25-35 days.

StandardISOshippingcontainersizesmakethecabincanbetransportedeasily.

Model	External				Internal			Weight(kg)
	Length (mm)	Width (mm)	Height(package)	Height(assembled)	Length (mm)	Width (mm)	Height (mm)
Standardcabin
20'	6055	2435	648/864	2591/2790	5860	2240	2500	from1850
Non-standardcabin
10'	2989	2435	648/864	2591/2790	2795	2240	2500	from1200
16'	4885	2435	648/864	2591/2790	4710	2240	2500	from1750
24'	7296	2435	648/864	2591/2790	7140	2240	2500	from2300
30'	9120	2435	648/864	2591/2790	8925	2240	2500	from2470

Any questions, pls send an enquiry to us!
