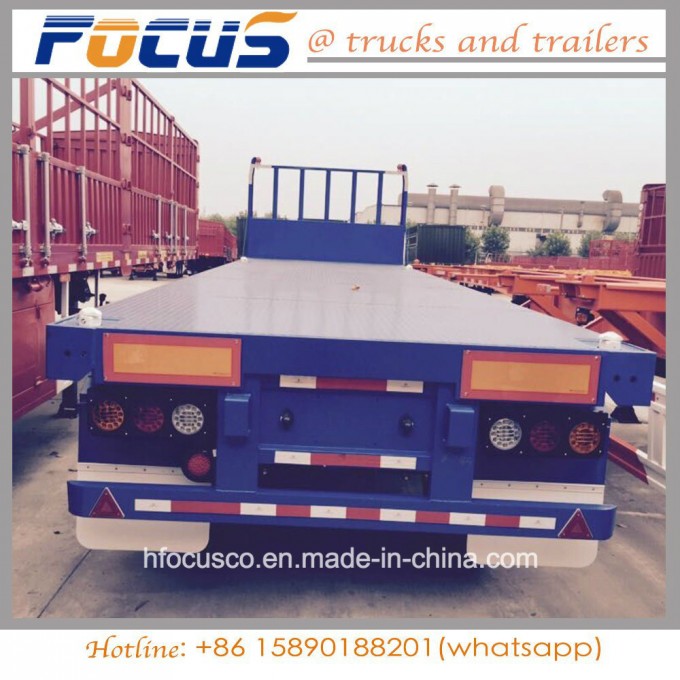

20 Feet 30 tons Co
ntainer Truck flatbed Semitrailer for Lebanon
TECHNICAL HIGHLIGHTS:
• Carrying for dry cargos, cement bags, 1*20ft containers
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction
Specifications:
| Item | Unit | Quantity | Notice |
| overall dimension | | | 7600length*2500width*1520height,
detail according to the drawing |
| axle | piece | 2 | FUWA-13T |
| tyre | piece | 8 | 11R20-16PR |
| rim | piece | 8 | 8.0-20 |
| leaf spring | piece | 4 | 90width*10pieces*12 thickness |
| braking system | set | | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
| electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| suspension | set | 2 | Standard Suspension |
| relay valve | whole vehicle | 1 | WABCO |
| landing gear | pair | 1 | 19" left side operation |
| kingpin 2" | piece | 1 | 50# Welded |
| tie-in | piece | 2 | haldex |
| chamber | piece | 4 | stored chamber 2 units T30/30 |
| upper and lower wing plates | | | 12/12mm,width146mm,
using the highly quality Q345 steel, |
| twist locks | | 4 | can load 1*20ft container |
| main beam | | | height: 450mm webplate:6mm
using the highly quality Q345 steel |
| reflectors | | | Red triangle reflectors at the rear of the trailer and on side |
| Shotblasting and paint | | | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIonAL alkyd FINISH TOP coat.total 80-100 microns. |
| spare tyre carrier | | 2 | standard |
| color | | | according to required on customer |
Details of the 40ft skeletontrailer for your reference
Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
