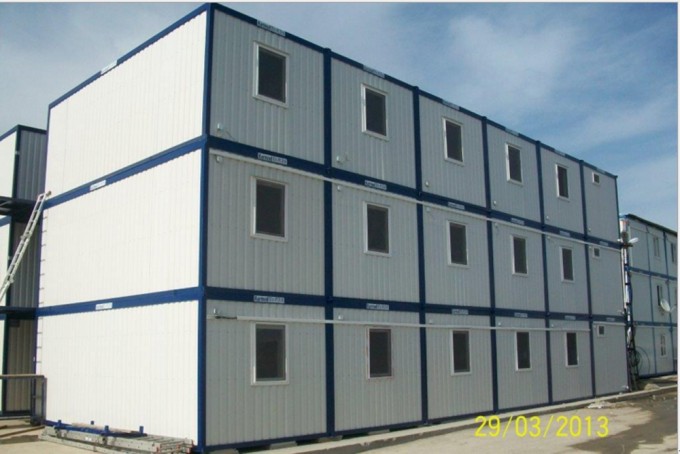

3 Stories Container House Buildings

about us
Henan K-home Steel Structure Co., Ltd adopt advanced design concept, use new energy-saving panel and interior decoration, making accommodation container house by standard production line and process. We could design accommodation container house according with different projects requirements. In the accommodation, we can supply full assembly such as bed, desk, closet, air conditioner, independent shower room and toilet room.

The Feature of 20ft Modular Container House of Two or more Floors for Office

1. Wall and roof panel use superior EPS, rock wool board, PU board(Polyurethane energy-saving plates).

2. The panel has homogeneous density. Panel surface design could be different color and different embossing.

3. All panel material surface has baking finish paint treatment, much durable and fashionable.

4.Steel frame structure are all galvanized, total dry film thickness is 70μm. Corrosion resistance is highly increased. Steel frame would have loading point, very easy to move and lifting.

5.We make special designed plastic steel window and steel door for our container house. Windows have shutters. Both door and window would be covered by steel mesh and screen to avoid animals and mosquito.

6.Container house would have High-grade waterproof plastic flooring fittings with PVC skirting line and concave line and fasteners, different Stylish appearance for option.

7.All circuit is built in wall panel or roof panel by concealed wiring, safe and durable, assembly with CE CCC Certified sockets, switch, ceiling lamp and distribution box.

8.All water pipes are also hidden layed, safe and convenient. Blowing off piping is designed very well outside the container house.

9.Strict production process makes our container house have good water tightness, wind-resistant and seismic resistance.

10.Wind Resistance: Grade 12
11.Wall permitted loading: 0.6KN/ m2
12.Ceiling Permitted live loading: 0.5 KN/m2
13.Wall Coefficient of thermal conductivity: K=0.442W/mk
14.Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Technical Data:

Brand	Khome
Model No#	K-C-Office01
Exterior size	Length	Width	Height
	5800mm	2438mm	2670mm
	Area	14 square meter
	Setup	Standard
Usage	Office, house, living room, rest room, activity room, bar, Villa, etc
Advantage	Roof dead load	180kg/m2
	Roof live load	180kg/m2
	Floor dead load	230kg/m2
	Floor live load	230kg/m2
	Wind pssure	0.90kn/m2
	Anti-earthquake	Grade 8
	Anti-fire	B1
	Anti-wind	Grade 8
	Anti-moist	Good
	Anti-static	Good
	Foundation load	f≥60kpa
Structure Component	Grand beam, Grand beam connect system beam, Angle column, Middle column Middle column connect system beam, Roof beam, Upper ring beam, Floor purlin, Roof purlin,
Component	Door	steel door
	Window	pvc sliding window 1750mm*950mm
	Roof tile	15mm Color pvc tile
	Interior partition board	50mm EPS
	Exterior wall board	50mm EPS
	Floor board	WPC 15mm
	Walkway board	Optional
Foundation Request	No request
Technical Specification	Electrical	optional, Can provide a reference solution
	Water supply and drainage	optional, Can provide a reference solution
	Ceiling	sandwich board
	Floor	15mm WPC
	Furniture	suggest customer buy it locally, or we can help to purchase
Quality control standard	Allow material errors	larger material&colon; L≥1000mm small material&colon; L<1000mm
	Allow punching or drilling errors	hole center ±2mm bore diameter ±1mm
	Install and weld	0.01%
	Polish	whole polish
	Paint	color shading < 1 degree

Application:
Multi-Office,Mining industry, oil and gas industry, school accommodation, military, railway project etc. Everywhere people need to do outside work, firstly they will need our office container house for workers and management.

Visit Factory

Welcome you to visit our factory anytime. We can provide invitation letter. Here you can talk with our engineer face to face, all your requirement will be in the design. You will watch all the goods producing, packing. You can check the goods before shipping. And you also see other clients' goods, and the buildings local we offered before.


Our service
1.We accept any drawings or your samples to develop new product.
2.Any small problems will be solved at the most prompt time.
3.We always offer relative technical supports, quick response, all your inquire will replied within 24 hours.
4.We can delivery the your goods within 25 workdays.
5.One-step service, we can provide Electrical, Plumbing, Toilet ,shower and sinks, and all you want.
6.OEM service.
7. Help to make invitation letters
