Detailed Description
Technical Specifications of the 5CBM vacuum suction sewage truck
| Item | unit | parameter |
| Product Name |
| HLQ5090GXW3EQ vacuum suction sewage truck |
| Chassis model |
| EQ1090T9ADJ3AC |
| Overall dimensions | mm | 6995×2285×2650 |
| Fact volume | L | 5000 |
| Net weight | kg | 4605 |
| Tank dimensions | Mm |
|
| Wheel base | 3800 |
| Front/rear overhang | 1180/2015 |
| Approach/departure angle | ° | 22/17 |
| Exhaust/hp | ml/kw | 3856/91 |
| Max speed | km/h | 95 |
| Tire specification | 7.50R16 | Engine type | CY4102-E3C |
| Traction system | 4×2 | Transmission | 5 Forward,1 Reverse |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 3 |
| Front axle 2.2 tons, rear axle 5 tons , air brake, with turbocharger, tilting cab. |
| Equipment | with lifting hydraulic cylinder
Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment
Time for full suction<5min |
| Engine | Dongfeng Chaoyang Diesel Engine (Euro III) |
| Production cycle | 15 to 20 days |
| Warranty | 12 month, from the date of supply |

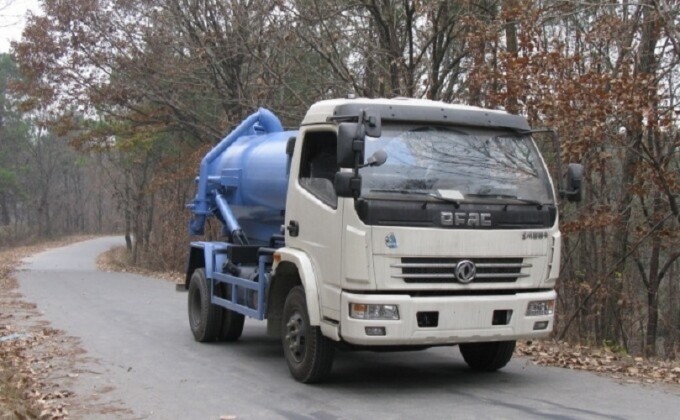

Product Image
