Detailed Description
Technical Specifications of the HOWO 10 CBM vacuum suction sewage truck
| Item | unit | parameter |
| Product Name |
| vacuum suction sewage truck |
| Chassis model |
| ZZ1164G4715C1 |
| Overall dimensions | mm | 7850x2490X3200 |
| Fact volume | L | 10000L |
| Net weight | kg | 8510 |
| Tank dimensions | Mm | 5140×1790 |
| Wheel base | 4325+1350 |
| Front/rear overhang | 1250/1900 |
| Approach/departure angle | ° | 24.5/15 |
| Exhaust/hp | ml/kw | 6494/140 |
| Max speed | km/h | 99 |
| Tire specification | 9.00-20 18PR | Engine type | YC6J190-33 |
| Traction system | 4×2 | Transmission | 10 Forward,1 Reverse |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 3 |
| 190hp EGR engien, L2000 flat cab, HW90710CL,EQ153 driving axle, front axle 4.3T, |
| Equipment | with lifting hydraulic cylinder
Equipped with vacuum pump 8T duplex pump (rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment
Time for full suction<5min |
| Engine | Diesel Engine (Euro III) |
| Production cycle | 15 to 20 days |
| Warranty | 12 month, from the date of supply |

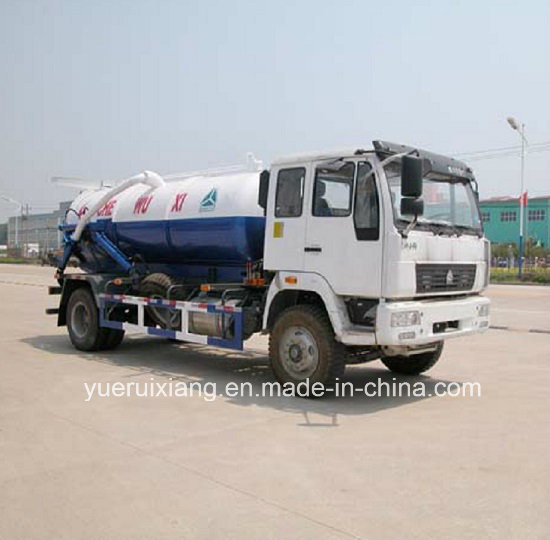

Product Image
