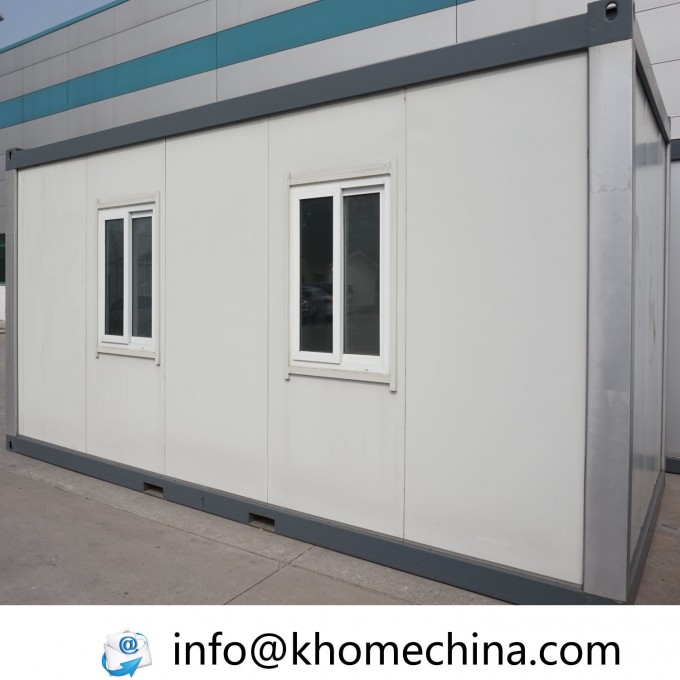

Shipping Container House With Long Life Span

Introduction:
Container houses can significantly shorten the construction period, more flexibility and mobility. Safer than traditional construction, quieter, more environmentally friendly and effective to ensure the stability and continuity of quality. Provides greater flexibility to the architectural design.

Usage of Container house
1.Living room (We can provide also the bed and other furniture.)
2.Office(Hight quality furniture is available)
3.Kitchen(Hight quality cabinet,cooking appliances etc)
4.Cold storage room - Well sealed 98% cold air kept in the house.
5.Public shower room
6 shower rooms in one 20FT contaienr house
7.Toilet

Features:
1. Prefabrication, easy to install and disassemble
2. Precision works, long life-span up to 20 years for use
3. Lightness, easy to transport and relocate
4. Using several times and recycling, economy and environment friendly
5. High strength and stiffness, high weight bearing
6. Waterproof and fireproof
7. Antiseptic and damp proofing
8. Sound insulation and heat insulation

Specifications:

No.	Sort	Name	Specification
1	Specification	length	According to clients' requirement.
2		Width	According to clients' requirement.
3		Ridge height	According to clients' requirement.
4		Inside height	According to clients' requirement.
5	Standard accessory	Wall Panel	75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
6		Roof Panel	50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k.
7		Door(D-1)	Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness
8		Door(D-2)	EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window
10		Window(W-2)	Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window ,
13		Channel beams	material:Q235. Painted
14		Column	material:Q235, Galvanized
15		Roof beam	The trusses are composed of Q235 steel , Galvanized
17	Option	Elevated ceiling	Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel
18		Elevated floor	Steel structure with 14mm plywood
19		Decorative floor	PVC, laminated or ceramic tile
20		Drainage system	Provided plan, design and construction
21		Electric system	Provided plan, design and construction
22	Technical parameter	Bearing load	50kg/m2
23		Wind pssure:	0.5KN/M2
24		Fire proof	B2 grade
25		Temperature resistant	-40--50
26		Earthquake resistant	8 magnitude earthquake

Component	long beam	3mm galvanized
	short beam	2.5mm galvanized
	column	3mm galvanized
	wall panel	75mm EPS sandwich board
	roof panel	75mm PU sandwich board
	secondary beam	Z-shaped galvanized steel iron
	roof insulation	75mm polyurethane
	Floor panel	18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm PVC
	Door	Steel Security door,740mmx1950mm
	Window	PVC Sliding window with Rolling shutter,1100mmx800mm
	electronics, water supply and drainage	according to the local law
	furniture and appliance	Customized-made to your requirements

Any questions, pls send an enquiry to us!
