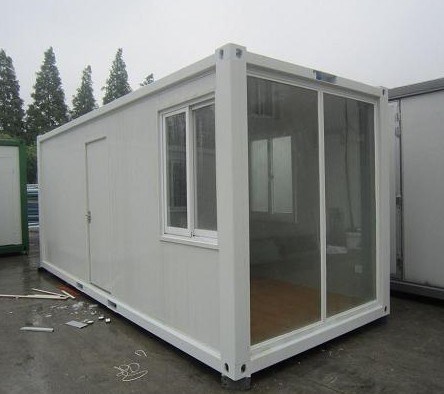

Prefabricated House Shipping Container Modular Homes

Henan K-home Steel Structure Co., Ltd adopt advanced design concept, use new energy-savingpaneland interior decoration, makingaccommodationcontainer house by standard production line and process. We could design accommodation container house according with different projects requirements. In the accommodation, we can supply full assembly such as bed, desk, closet, air conditioner, independent shower room and toilet room.
The Feature of our accommodation container house:

Wall and roof panel use superior EPS, rock wool board, PU board(Polyurethane energy-saving plates). The panel hashomogeneous density. Panel surface design could be different color and differentembossing. All panel material surface has baking finish paint treatment, much durable and fashionable.Steel frame structure are allgalvanized, total dry film thickness is 70μm.Corrosion resistanceis highly increased. Steel frame would have loadingpoint, very easy to move and lifting.We make special designedplastic steel window and steel doorfor our container house. Windows haveshutters. Both door and window would be covered by steel mesh and screen to avoid animals and mosquito.Container house would haveHigh-grade waterproof plastic flooringfittingswithPVC skirting line and concave line and fasteners, differentStylish appearancefor option.All circuit is built in wall panel or roof panel byconcealedwiring, safe and durable, assembly with CE CCC Certified sockets, switch,ceiling lampanddistribution box.All water pipes are alsohidden layed, safe and convenient.Blowing off pipingis designed very well outside the container house.Strict production process makes our container house have goodwatertightness,wind-resistantandseismic resistance.Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Technical Parameter:

Brand	Khome
Model No#	K-C-Office01
Exterior size	Length	Width	Height
	5800mm	2438mm	2670mm
	Area	14 square meter
	Setup	Standard
Usage	Office, house, living room, rest room, activity room, bar, Villa, etc
Advantage	Roof dead load	180kg/m2
	Roof live load	180kg/m2
	Floor dead load	230kg/m2
	Floor live load	230kg/m2
	Wind pssure	0.90kn/m2
	Anti-earthquake	Grade 8
	Anti-fire	B1
	Anti-wind	Grade 8
	Anti-moist	Good
	Anti-static	Good
	Foundation load	f≥60kpa
Structure Component	Grand beam, Grand beam connect system beam, Angle column, Middle column Middle column connect system beam, Roof beam, Upper ring beam, Floor purlin, Roof purlin,
Component	Door	steel door
	Window	pvc sliding window 1750mm*950mm
	Roof tile	15mm Color pvc tile
	Interior partition board	50mm EPS
	Exterior wall board	50mm EPS
	Floor board	WPC 15mm
	Walkway board	Optional
Foundation Request	No request
Technical Specification	Electrical	optional, Can provide areference solution
	Water supply and drainage	optional, Can provide areference solution
	Ceiling	sandwich board
	Floor	15mm WPC
	Furniture	suggest customer buy it locally, or we can help to purchase
Quality control standard	Allow material errors	larger material: L≥1000mm small material: L<1000mm
	Allow punching or drilling errors	hole center ±2mm bore diameter ±1mm
	Install and weld	0.01%
	Polish	whole polish
	Paint	color shading <1 degree

Accommodation Container House Layout for reference:




Application:
Our accommodation container house has been used for many industries, Mining industry, oil and gas industry, schoolaccommodation, military, railway project etc. Everywhere people need to do outside work, firstly they will need ouraccommodationcontainer house for workers and management.
If you want acomplete solution for container house design, construction, installation, Do contact me to get adetail offer!
