Cement Mix Concrete Mixer Truck (6X4, 9M3)
Cement Mix Concrete Mixer Truck (6X4, 9M3)

Cement Mix Concrete Mixer Truck (6X4, 9M3)

Categories: Truck , Concrete Pump Truck
FOB Price:45000.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:10 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:SelinaJiang
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description
XCM Concrete Mixer(NXG5251KGJB3A)
1)Drive model: 6*4
2)Dimension: 13650*11150*24995mm
3)Max speed: 80km/h
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic pheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart pvention system effectively avoids the misoperation, and improve the use security of the machine.

Model

NXG5251KGJB3A

NXG5250KGJB3

NXG5250KGJB3B

NXG5251KGJB3B

Drive type

6×4

Parameters

Max.travel speed(km/h)

80

80

80

80

Max.gradeability(%)




Max.braking gradient(%)




Min.turning diameter(m)




Fuel Tank Capacity(L)

240

240

240

240

Min.ground clearance [full load](mm)

245

245

245

245

Electric system(v)

24

24

24

24

Weight

Curb weight(kg)

13650

14620

13650

13650

Rated load(kg)

11150

10180

11150

11150

Max.total weight(kg)

24995

24995

24995

24995

Dimension

Total length(mm)

9020

9720

9020

9020

Total width(mm)

2500

2500

2500

2500

Total height [no-load](mm)

3900

3995

3900

3900

Wheel base(mm)

3650+1350

4000+1350

3650+1350

3650+1350

frame(mm)

320

320

320

320

Leaf spring

9/13

9/13

9/13

9/13

Main Parts

Cab

Medium top

Medium top

Medium top

Medium top

Engine

WP10.270N

WP10.336N WD615.95C

ISLe340 30

WD615.92C
YC6M290-32

Transmission

9JS135

RT-11509c

RT-11509c

9JS135

Front Axle

7.5 ton

7.5 ton

7.5 ton

7.5 ton

Rear Axle

Steyr Middle/rear

Steyr Middle/rear

Steyr Middle/rear

Steyr Middle/rear

Tire

12.00R2012.00-20

12.00R20 12.00-20

12.00R20 12.00-20

12.00R20 12.00-20

Compartment dimension(inner)L×W×H

9M 3

12M 3

9M 3

9M 3
Product Image

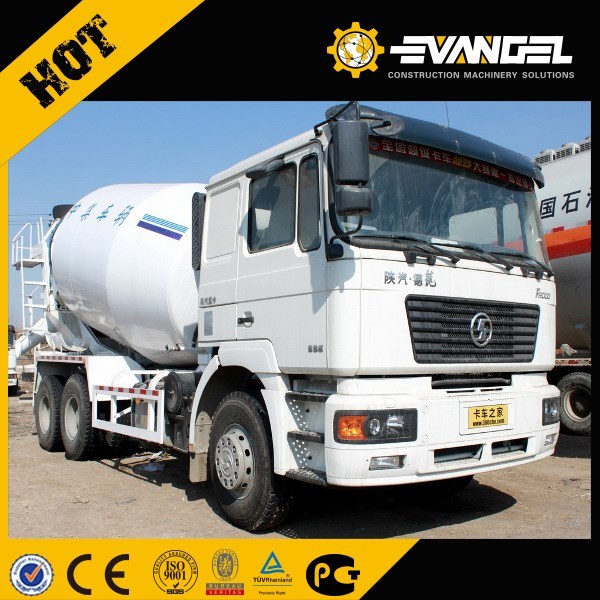

Cement Mix Concrete Mixer Truck (6X4, 9M3) Image1
