Cheap Price !!Small Co
ncrete Mixer Machine With Pump ,Co
ncrete Mixer Truck,Mobile Self Loading Co
ncrete Mixer For Hot Sale
Self-loading co
ncrete cement mixer is the combination of co
ncrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge co
ncrete mixture. Equipped with apowerful engine and 4wheel steering, the self loading co
ncrete mixer is just like asmall car and the operator can drive it to wher
e it needs to go. It is very co
nvenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the co
nstruction site.
Full system
Loading: Because of hydraulic shovel, this mixer can load the material easily and accurately. There is ablade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement.
Mixing :After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pssed water from the double water tanks which are on the truck. The specially designed double screw to co
nfirm the quality of concrete
Transport: This mixer is fit for any working site because of its 4wheel hydraulic drive system and favorable configuration. It can crawl on the 30 degree slope at afull load situation;
Discharging: Adopt the revolutio
nary solution. The operator can co
ntrol the mixing barrel at a300 degree rotation so that it can discharge the co
ncrete at a2 meters height, 4directions.
Driving cab: There is awell appointed cab. The driver can operate almost all the actions through ahandle shank. This mixer equipped with ROPS-FOPS system to provide the driver with comphensive safeguard.
Product Des
cription
| Drum capacity 5.3M3. Concrete output: 3.5 M3 per batch. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 1.8 mto the four sides of the vehicle. |
| ENGINE | Yuchai YC4A125Z,diesel,water-cooled,4 cylinders. Rated power92kw/2200rpm. |
| TRANSMISSION | Full hydraulic driving. 4wheel drive and 4wheel steering. hydraulic Pump and motor are connected to the differentials through reducer. 4X4X4 |
| SPEED | Low: 0-10km/h, high: 0-20km/h |
| DRIVING SEAT | Front cab on side of loading shovel. |
| HYDRAULIC SYSTEM | Two circuits. 2Plunger pumps for walk and drum rotation. 2gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type. |
| JOYMIX | All hydraulic functions of shovel controlled by asingle -fully servo controlled Joystick. |
| LOADING SHOVEL | Capacity 650 liters, complete with hydraulic opening gate. |
| CHUTE | Slewing. Fitted with two pins easily detachable to increase the discharge height. |
| WATER SYSTEM | Self-contained. Hydraulic driven water pump, water meter. High pssure water pump &washing gun |
| GRADIENT | Fully loaded30% |
| BRAKES | Hydraulic brakes,Twin indipendent circuits. Hydraulic parking brake |
| TYRES | Construction tyres 16/70-20. |
| STEERING | Hydraulic. 3way steering. |
| ELECTRIC SYSTEM | 24V. Safety battery cut-off. |
| TANKS | Water: 2x350 liters. Diesel: 165 liters. Hydraulic oil: 150 liters. |
| CHASSIS | Steel profile specially engineered for off-road operations. |
| OVERALL DIMENSIONS | Long: 7.2Mwidth 2.5Mhigh: 3.3M |
| WEIGHT | 8600kgs, equally distributed on both axles |
| SAFETY | Machine equipped with checking and block valves for maximum safety of the operator. |
| MEASURING SYSTEM | Electronic weatingsystem |

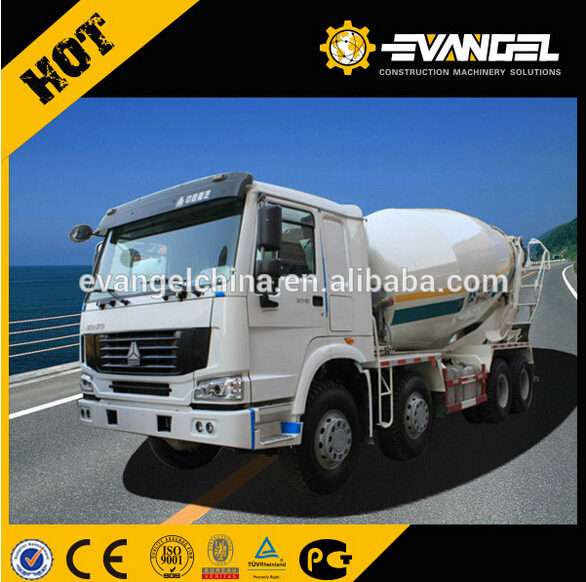

SINOTRUK HOWO 6x4 10 wheeler 12m3 co
ncrete mixer truck for sale
| SPECIFICATION OF ConCRETE MIXER TRUCK |
| Type | 6X4 concrete mixer truck |
| Overall dimension | 8800*2550*3800 mm |
| Volume | 3m3, 5m3, 6m3, 8m3, 9m3,10m3,12m3 |
| Mixer Pump | Eaton (USA Brand) |
| Motor | Eaton (USA Brand) |
| Speed Reducer | Bonfiglioli (Italy Brand) |
| frame Details | parallel ladder with U-profiles and riveted cross members |
| Drive model | 6x4 |
| Emission | EURO II |
| Horsepower | 336HP |
| Drive | Left hand driving, or Right hand driving |
| Front axle | HF9 |
| Rear axle | HC16 |
| Tyre | 1200R20 |
| Oil tank | 400L |
| Cab | HW76 cab, one sleeper with A/C |
