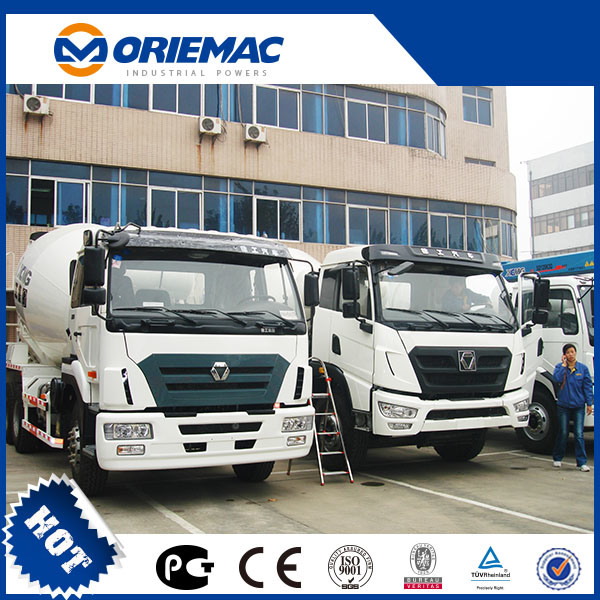

Liugong Hold Concrete Mixer Truck Yzh5253gjbhw

Liugong Hold Concrete Mixer Truck YZH5253GJBHW

1. Driving type: 6*4
2. Drum volume: 13.4m3
3. Engine power 247KW China III emission


CHASSIS
Chassis Model DELONG SX5255GJBJR364
Emission Stage CHINA 3
Engine Power 247KW
Engine Displacement 9.726L
Driving Type 6× 4
Wheelbase 3625+1350mm
Max. Running Speed 77km/h
Min. Turning Radius 19 m
Brake type Air pssure of double loop
Truck loading capacity 12070 kgs


DRUM
Drum material Baosteel B520JJ
Drum volume 13.4 m³
Drum loading capacity 8m³
Drum agitating volume 5m³
Material charge speed ≥3 m³ /min
Material discharge speed ≥2.7 m³ /min
Material discharge control Manual
Drum remnant ratio of discharging ≤0.5%
Drum rotating speed 0-18 (r/min)
Drum tilt angle 13°


HYDRAULIC SYSTEM
Hydraulic pump Sauer KPV23-674R
Hydraulic pump type Piston pump
Hydraulic motor Sauer KMF23-516-50
Speed reducer Sauer TMG61.2
Hydraulic circuit type closed circuit cycle
Hydraulic tank capacity 20L
Water tank capacity 450 L

DIMENSIONS&WEIGHT
Overall Length 8850mm
Overall Width 2496 mm
Overall Height 3780 mm
Truck gross Weight 25000 kgs
Truck net weight 12800 kgs
DIMENSIONS&WEIGHT
Overall Length 8850mm
Overall Width 2496 mm
Overall Height 3780 mm
Truck gross Weight 25000 kgs
Truck net weight 12800 kgs

Type	Model	Unit	G15SX
Performance of mixing drum	Geometric volume	m³	23.5
	Mixing volume	m³	15
	Maximum diameter of drum body	mm	2432
	Length of mixing drum	mm	7009
	Angle of inclination	°	10
	Rotating speed	r/min	0~14
	Charge speed	m³/min	≥3
	Discharge speed	m³/min	≥2
	Residue ratio of discharge	%	<0.7
	Range of slump	cm	5~21
Hydraulic system	Oil pump		international brand
	Motor		international brand
	Reduction gears		international brand
	Hydraulic circuit		Closed type
Water supply	water tank capacity	L	450
	Way of water supply		Pneumatic
	Chassis model		SX5315GJBJT346
	Type of driving		Left-hand drive
	Curb weight	kg	17000
	maximum gross weight	kg	31000
	Type of drive		8×4
	Wheel base	mm	1800+3375+1400
	Tyre		12.00R20
	Means of power takeoff		Power takeoff by flywheel
	Notice model		XZJ5310GJB2
	External dimensions	(length×width×height)mm	11910×2500×3995
Engine	Model		WP10.375/WP10.380E32
	Rated power	Kw/r/min	276
	Displacement	L	9.726
	Emission standard		GB III
