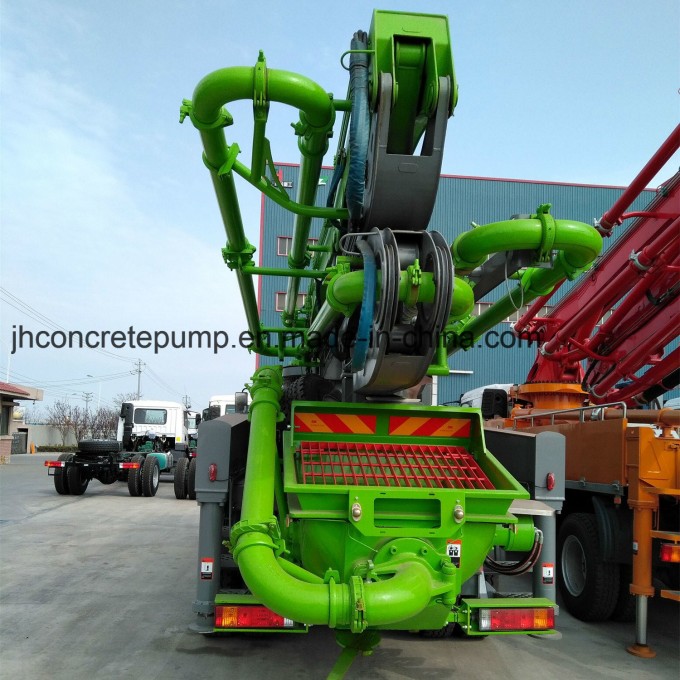

New Model 39m Pump Truck for Sale with Good Price

truck

truck brand

SHACMAN/FAW JIEFANG/FOTON/ISUZU/SINOTRUK

Emission standard

CHINA V

Engine

WP7.300E51

Engine power/rotate speed

200p/2000rpm

Wheelbase

4600+1350, 6*4

Power

300HP-360HP

Max.speed

90km/h

approach/away degrees

24.6°/15.6°

tyre size

12.00R20

Jib system

Max. Vertical height

37.8m

(MM)First Arm length

7800

(MM) Second Arm length

6500

(MM) Third Arm length

6250

(MM) Fourth Arm length

6700

(MM) Fifth Arm length

6700

Each arm rotation

90/180/180/235/235°

Boom control mode

Sensitive load ratio control

Boom fold mode

M

Rotating tower Rotary angle

90°

Front legs transverse distance

6250mm

back legs transverse distance

7450mm

(MM) Front and back legs longitudinal distance

6945mm

legs open mode

X

end rubber hose length

3000mm

(MM)concrete delivery pipe dia.

125mm

electric control system

control power

24v

Control module

PWM

working voltage

24v

intermediate relay

Omron

wireless remote control brand

Jijing or HBC Or Kaishang

hydraulic system

hydraulic system type

Open

system working pssure

31.5Mpa

main oil pump

Rexroth or Handoc

Main oil pump displacment

190/180

oil suction or oil return filter

Leemin Hydraulic

Arm balance valve brand

Italy brand

oil tank hydraulic seals brand

Parker

hydraulic oil tank volume

450L

hydraulic oil cool mode

Fan cool

Main oil cylinder

Xieli

Rubber hose joints brand

Eaton

Dimension &weight

(MM)length

11200

(MM)width

2500

cMM)height

3900

(T) Overall weight

26

Pumping system

distribution valve type

S tube

Max. concrete outlet pssure

10.5

Pumping Capacity

140m3/h

concrete cylinder inner dia./stroke

200/1900

(MM)max. feeding height

1450

(m³)hopper volume

0.65

concrete slump

160-220

(MM)Max. allowable aggregate size

40

Lubrication mode

centralized
