High Quality 12m3 Concrete Mixer Truck Dimensions Concrete Mixer Truck for Sale

High quality 12m3 Concrete mixer truck dimensions Concrete mixer truck for sale

Product Introduction

Concrete mixing truck consists of truck chassis and concrete mixing delivery device, mixing tank keeping rolling during the transportation process. It is special purpose vehicle that combines the functions of concrete mixing and delivery.

Concrete mixer truck features
1. The whole truck is convenient and stable with strong intensity.
2. Special purpose chassis is specially developed for rural market, even narrow country road can be easily handled.
3. Steel structure adopts high-strength steel shot blasting, structure strength improved 20%, strong bearing capacity and great anti-knock effects.
4. Concrete mixer tank with Superior performance
Optimized design of concrete mixing tank, improve loading ability, mixing on average without separation.
Mixing blade adopt three-dimensional double helix mixing design, reducing remnant rate to 0.6%, better than international standard 2%, leading the industry standard 0.7%-1%.
The blade has unique wear-resisting protection structure, improving blade service life 80%.
5. The design of low angle of inclination, center of gravity is lower 5% than similar concrete mixing truck, safety factor higher 10%.
6. Simple operation and useful application

Feeding inlet and discharging outlet with reasonable design, faster feeding and discharging, easy operation.

Technical Parameters

Weight		KG	15800
Dimensions		mm	10380x2496x3980
Wheelbase		mm	4025+1350
Max.driving speed		Km/h	80
Minimum clearance		mm	265
Max.climbing degree		%	30
Engine	Model		D10.34-50
	Displacement	L	9.726L
	Injection way		High pssure common rail
	Exhaust emission standard		NationV
Gearbox model		-	HW19710
Rear axlemodel		-	HC16
Tyre model		-	12.00R20
Drum data	Output Residue Rate	-	≤ 0.5%
	Feed Rate	cu.m/min	≥3
	Output Rate	cu.m/min	≥2
	Mixing Drum Inclination Angle	.	13
Hydraulic drive system	Oil pump/Motor	-	ARK/PMP
	Reducer	-	TOP/PMP

solid model

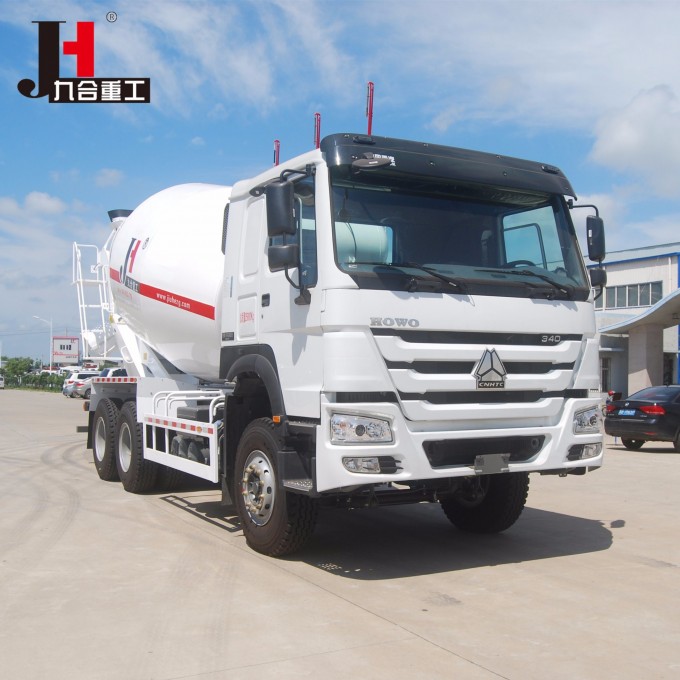

product picture

Company Information
Jiuhe Heavey Industry is aprofessional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been aglobal famous brand in construction machinery industry.







JiuHe Service
As aprofessional company,we promise as following:

Delivery time:
Within 30workingdays for the standard pump after receipt of ppayment.

Installment:
We will arrange the technician to install and test the equipment, and trainoperation personnel for free. The traveling expense, board and lodging expenses should be assumed by the customer.

After-sales service:
The digital commitment system,clear standards of service and payment basis,value chain covering the whole product life and engineers for global service ensure NO WORRY.

Guarantee time:
12 months after the machine leaves factor.
