Product profile
Model NO.: JH5190THB-30Shotcrete Type: WetStructure: Cylinder TypeCertification: ISO9001: 2000, CE, BVColor: Optio
nalDrive Mode: 4X2System Working Pressure: 31.5MPaDimension of Allowable Maximum Aggregate: 40mmTransport Package: Spray WaxOrigin: Shandong ChinaType: Co
ncrete Pump TruckMachining Process: HydraulicFeeding Height: 1450mmCondition: NewEngine Power: 200HPChassis: Foton/Dongfeng/Sinotruk/FAWHopper Capacity: 650LTrademark: JIUHESpecification: 10010
x2350X3563mmHS Code: 8705909100Product Des
criptio

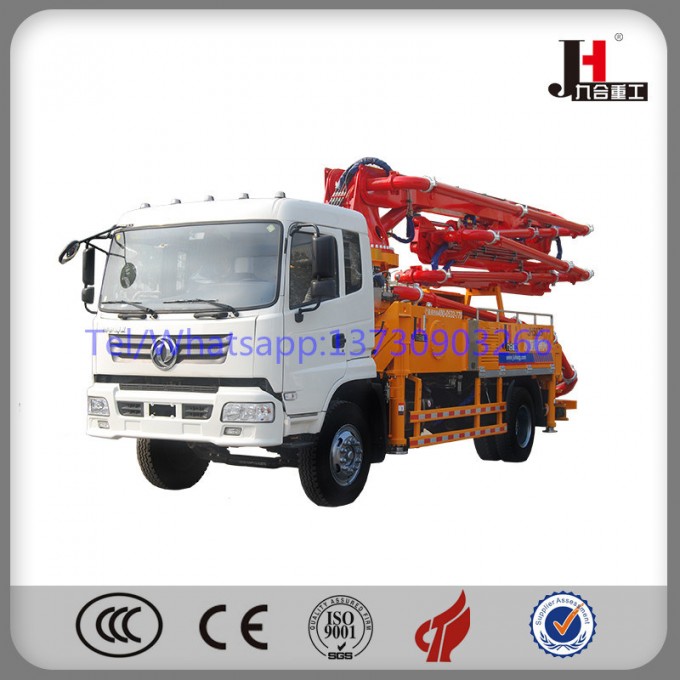

nJIUHE Brand 30m Co
ncrete pump truck/boom pump truck with CE&ISO Certification
1.Fully hydraulic co
ntrol technology.
2.Intelligent electric co
ntrol system,simple structure,reducing electric faults.
3.Auto-detect hydraulic oil and temperature, protecting hydraulic system.
4.All weld lines by 100% no
ndestructive flaw detection.
5.Electric co
ntrol system, simple operation,easy maintenance, low failure rate,main compo
nents adopt Schneider im
ported from France.
6.Lubricating system adopts fully automatic muti-points lubricating technology,one-to-one lubricating with excellent performance, effectively extending the service life of wearing parts.
Main technical parameters of 30m pump truck:
| 30m Pump truck |
| I.CHASSIS | ChassisBrand | FOTON |
| Emission standards | National standard IV |
| Engine | DACHAI or YUCHAI |
Power and rated speed of engine
| 200Hp/2000rpm |
| Wheelbase | 4800 |
| Max driving speed | 80km/h |
| Vehicle approach angle/departure angle | 24.6°/15.6° |
| Tire type | 10.00R20 18 layers |
| II. Boom system | | |
| 1 | Maximum vertical height of boom (M) | 29.2 |
| 2 | Horizontal distribution radius of boom (M) | 25.6 |
| 3 | Depth of distribution (M) | 17.3 |
| 5 | Arm length of the first section (MM) | 7660 |
| 6 | Arm length of the second section (MM) | 6200 |
| 7 | Arm length of the third section (MM) | 5900 |
| 8 | Arm length of the fourth section (MM) | 5800 |
| 9 | Rotating angle of each arm | 90/180/360/540 |
| 10 | Control mode of boom | Electric proportion |
| 11 | Folding type of boom | Mtype |
| 12 | Rotating angle of turret | 470° |
| 13 | Span distance of front landing leg (MM) | 5842 |
| 14 | Span distance of rear landing leg (MM) | 4250 |
| 15 | Longitudinal distance between front and rear landing leg (MM) | 6177 |
| 16 | Opening mode of landing leg | X-H |
| 17 | Length of end hose (MM) | 3000 |
| 18 | Diameter of concrete delivery pipe (MM) | 125 |
III. Electric Control System | | |
| 1 | Working voltage: | 24 |
IV. Hydraulic
transmission system | | |
| 1 | Type of hydraulic system | Open type |
| 2 | System working pssure (Mpa) | 31.5 |
| 3 | Displacement of main hydraulic oil pump (ml/r) | 140 |
| 4 | Hydraulic fuel tank capacity (l) | 420 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 6 | High-low pssure changeover valve | None |
| V. Pumping system | | |
| 1 | Form of concrete distribution valve | S valve |
| 2 | Maximum concrete outlet pssure (Mpa) | 10.5 |
| 3 | Reversing times of distribution valve | 24 |
| 4 | Inner diameter/stroke of delivery cylinder | 200/1450 |
| 5 | Maximum feeding height (MM) | 1450 |
| 6 | Hopper capacity (M3) | 0.65 |
| 7 | Slump of pumped concrete | 160-220 |
| 8 | Dimension of allowable maximum aggregate (MM) | 40 |
| 9 | Lubricating method | Centralized lubrication |
