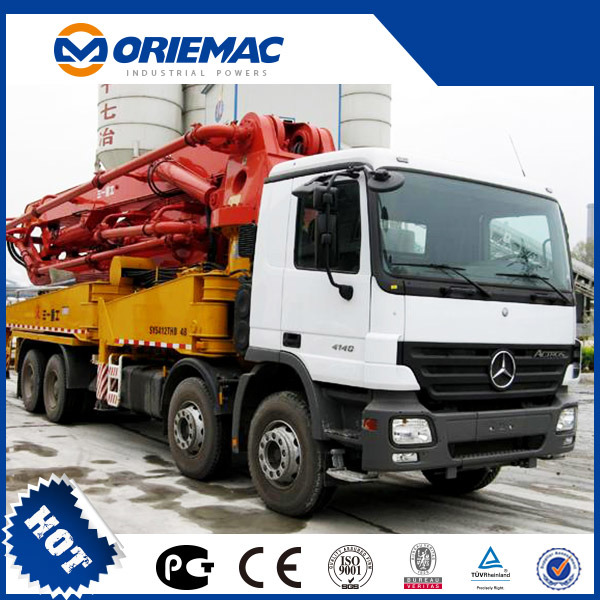

Sany 46m Concrete Pump Trucks (SYG5310THB)

Sany 46M Concrete Pump Trucks(SYG5310THB)

5 sections RZ form Boom, highest flexlbility;
X outrigger, easy and fast operation, 0SS function;
Hligh performance SYMC control unit and fine definition SYLD display;
Automatic retraction of concrete piston, easy replacement and maintenance friendly;
Electro-hydraulic buffer, differentiaI pssure induction, open loop hydraulic system, low operation temperature; Less impact and high reliabllity.

Sany SYG5530THB 43 truck-mounted concrete pump has 43m vertical reach with the height limit programmed to pvent boom contact with an obstruction or overhead hazard. The 43m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows pcise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or pss downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pssure in the event of excessive boom load to pvent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a pset level, an alarm will sound and the pump will be stopped to pvent damage to the hydraulic system.

Length	12580mm	12588mm
Width	2500mm
Height	4000mm
Dead weight	38500kg
