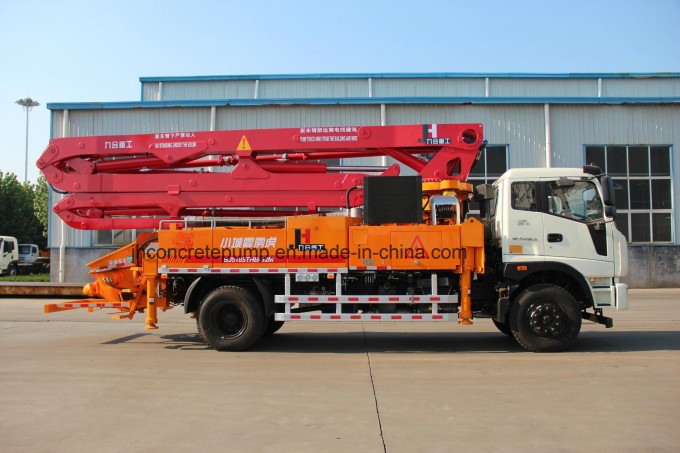

Small Model Concrete Boom Pump Truck with Ce
Small Model Concrete Boom Pump Truck with Ce

Small Model Concrete Boom Pump Truck with Ce

Categories: Truck , Concrete Pump Truck
FOB Price:100000.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:48 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:Ruth
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description


Brief introduction

JH Small concrete mixer truck for sales are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumping system. Jib structures are flexible, support legs occupy small space, the trucks move easily, safe and stable, the vehicle is 2300mm or 2350mm wide with perfect passing ability.

Features
  1. Designed for new rural middle and small buildings construction.
  2. Short arms specially designed for high-speed rail construction.
  3. National IV emission standard,more energy-saving and environmental protection.
  4. Pumping system hydraulic controlled automatic reverse, make the maintenance easier.
  5. 25-33 meters jib structures are conform to the high-speed rail project laws.
  6. "X"type support leg ensure the operation more safe and stable.
  7. Cost-effective Performance help the construction side create benefit.

    Specification of concrete boom pump
    34m concrete boom pump
    I. Chassis
    1Chassis engine modelBF6M2012-22E4
    Jiefang chassis BF6M2012-22E4
    2Chassis engine power161Kw/2500rpm
    Jiefang chassis 161Kw/2500rpm
    II. Boom system
    1Maximum vertical height of boom (M)33.3
    2Horizontal distribution radius of boom (M)29.8
    3Depth of distribution (M)25
    4Opening height of boom (M)6
    5Arm length of the first section (MM) 7800
    6Arm length of the second section (MM)5400
    7Arm length of the third section (MM)5400
    8Arm length of the fourth section (MM) 5600
    9Arm length of the fifth section (MM) 5600
    10Rotating angle of each arm90°/180°/230°/180°/208°
    11Control mode of boom Electric proportion
    12Folding type of boomRZ type
    13Rotating angle of turret 360°
    14Span distance of front landing leg (MM)6015
    15Span distance of rear landing leg (MM) 7842
    16Longitudinal distance between front and rear landing leg (MM)7128
    17Opening mode of landing legX-R
    18Length of end hose (MM)3000
    19Diameter of concrete delivery pipe (MM)125
    III. Electric Control System
    1Working voltage: 24
    IV. Hydraulic transmission system
    1Type of hydraulic systemOpen type
    2System working pssure (Mpa)31.5
    3Displacement of main hydraulic oil pump (ml/r) 180/190
    4Hydraulic fuel tank capacity (l) 420
    5Cooling mode of hydraulic oilForced-air Cooling
    6High-low pssure changeover valveNone
    VI. Dimension and weight
    1Total length (MM)9900
    2Total width (MM) 2410
    3Total height (MM)3500
    4Total weight (T)22.5
    VII. Pumping system
    1Form of concrete distribution valveS valve
    2Maximum concrete outlet pssure (Mpa)10.5
    3Reversing times of distribution valve24
    4Inner diameter/stroke of delivery cylinder200/1450
    5Maximum feeding height (MM) 1450
    6Hopper capacity (M3) 0.65
    7Slump of pumped concrete160-220
    8Dimension of allowable maximum aggregate (MM)40
    9Lubricating methodCentralized lubrication

    Small Model Co<em></em>ncrete Boom Pump Truck with Ce
    Small Model Co<em></em>ncrete Boom Pump Truck with Ce
    Our factory:
    Small Model Co<em></em>ncrete Boom Pump Truck with Ce

    Small Model Co<em></em>ncrete Boom Pump Truck with Ce

    Our projects
    Small Model Co<em></em>ncrete Boom Pump Truck with Ce

Product Image
Small Model Concrete Boom Pump Truck with Ce Image1
