Detailed Description
25m co
ncrete boom pump truck for sales!
1.Fully hydraulic co
ntrol system,fast fault location,saving half time or more than 50% in fault detection.
2.Electric co
ntrol system,intelligent electric co
ntrol system,simple structure,reducing electric faults.
3.Double -engine system.
4.Safe operation technology, effective error-proof operation co
ntrol design ensure the system,more reliable and safe.
Technical Parameters:
| JH5160THB- 25Concrete boom pump truck |
BOOM SYSTEM | Max concrete placing height | 25m |
| Arm foldable angle | 90/180/360/540 |
| Boom control system | Load sensing proportion control system |
| Arm folding form | M type |
| Turret rotation angle | 90° |
| Front support leg span | 5350 |
| Back support leg span | 3300 |
| The leg longitudinal distance (MM) | 6100 |
| Leg opening type | X-H |
| Trail length of hose | 3000mm |
| Diameterof pipeline (MM) | 125 |
| Electrical control system | CPS | 24v |
| Control model | PWM |
| Working voltage | 24 |
| Electric parts | OMRON |
| Wireless remote control | GERMANYHBC |
| Hydraulic transmission system | Hydraulic system type | Open circuit |
| Rated working pssure | 31.5Mpa |
| Main oil pump | REXROTH |
| Main oil pump model | A11VO190,K3V140 K3V180 |
| Main oil pump capacity | 190,140,180 |
| Oil cylinder hydraulic seals | Parker |
| Hydraulic hopper capacity | 450 |
| Hydraulic oil cooling | Air-cooling |
| Hose connection | Eaton |
| Cleaning system | Air pssure or plunger pump | |
| PUMPING SYSTEM | The type of distribution valve | S valve |
| Max. outlet pssure(H/L) | 10/5 |
| Concrete cylinder Dia x Stroke | 200/1200-1450 |
| Max. feeding height(MM) | 1450 |
| Hopper capacity(M3) | 0.65 |
| Concrete slump | 160-220 |
| Allowable max diameter of aggregate(MM) | 40 |
| Lubricating model | Centralized automatic |

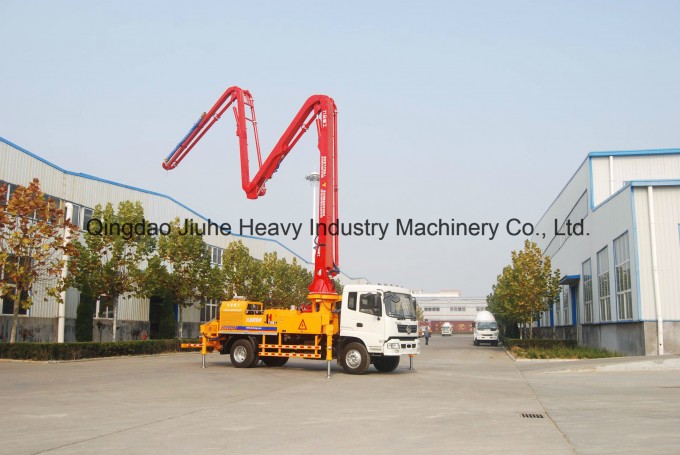

Product Image
