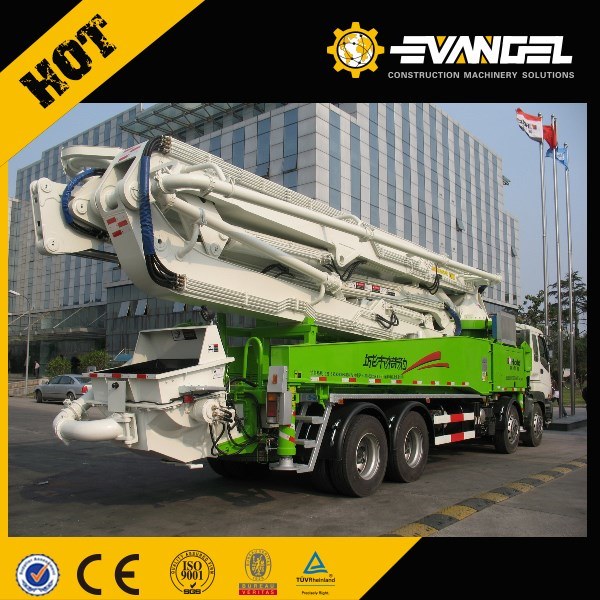

Sany 46m Truck Mounted Concrete Pump Dump Truck

SANY 46m truck mounted concrete pump SY5313THB46B

SY5310THB40R 46

3-axle chassis and 46m placing height
Maximum nominal output compared with other products with 3-axle chassis: 170m3/h output
Lightest weight compared with other products with similar boom: 32.8t of gross weight
SY5310THB40R 46 truck-mounted concrete pump also has the following advanced technologies:
Construction Machinery Energy saving Technology Award: The First Prize of 2008' Hunan Provincial Science and Technology Progress

Roll-over Protection Control Technology
SANY SYMC and SYLD control system is more friendly interface, better anti-disturbing capacity, faster running speed, large working temperature range (-40° C+80° C), and IP67 protective degree.
Patented Boom Vibration Control Technology
SANY hydraulic system with electro-hydraulic proportional cushion technology has automatic filtrate function, higher hydraulic oil filtration, lower temperature and smooth reversing.

	Dead weight		32800kg
	Vertical reach		46.0m
	Horizontal reach		41m
	Reach depth		28.8m
	Unfolding reach		13.4m
	1st section	Length	9255mm
		Articulation	90°
	2nd section	Length	7060mm
		Articulation	180°
	3rd section	Length	6890mm
		Articulation	180°
	4th section	Length	9220mm
		Articulation	240°
	5th section	Length	9580mm
		Articulation	240°
	Rotation		360°
	Outrigger spad L-R-Front		8820mm
	Outrigger spad L-R-Rear		85400mm
