Factory Price 38m Mounted Concrete Pump Trucks for Sale in India

Factory price 38m mounted concrete pump trucks for sale in india



Product Introduction
THBconcrete pump truck is apopular small model with max.Placing height34m researched and developed by our company after our HBT series trailer-mounted concrete pumps, HBC series truck-mounted concrete pumps and HGY series hydraulic concrete placing booms.
THBconcrete pump truck is combined with high reliability, economy, safety and durability. It has reasonable collocations for the chassis system, power system, control system, hydraulic system and pumping system. With the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis, equipped with H/L pssure switch, high outlet pssure, the whole concrete pump truckJH5230THB-34is more flexible, reliable, stable and safe. It is the top-choice concrete equipment widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.

Technical Parameters

Model	JHZ5264THB
truck
truck brand	SHACMAN
Emission standard	CHINA IV
Engine	WP7.300E51
Engine power/rotate speed	200p/2000rpm
Wheelbase	4600+1350, 6*4
Power	300HP
Max.speed	90km/h
approach/away degrees	24.6°/15.6°
tyre size	12.00R20
Jib system
Max. Vertical height	37.8m
(MM)First Arm length	7800
(MM) Second Arm length	6500
(MM) Third Arm length	6250
(MM) Fourth Arm length	6700
(MM) Fifth Arm length	6700
Each arm rotation	90/180/180/235/235°
Boom control mode	Sensitive load ratio control
Boom fold mode	M
Rotating tower Rotary angle	90°
Front legs transverse distance	6250mm
back legs transverse distance	7450mm
(MM) Front and back legs longitudinal distance	6945mm
legs open mode	X
end rubber hose length	3000mm
(MM)concrete delivery pipe dia.	125mm
electric control system
control power	24v
Control module	PWM
working voltage	24v
intermediate relay	Omron
wireless remote control brand	Jijing or HBCOr Kaishang

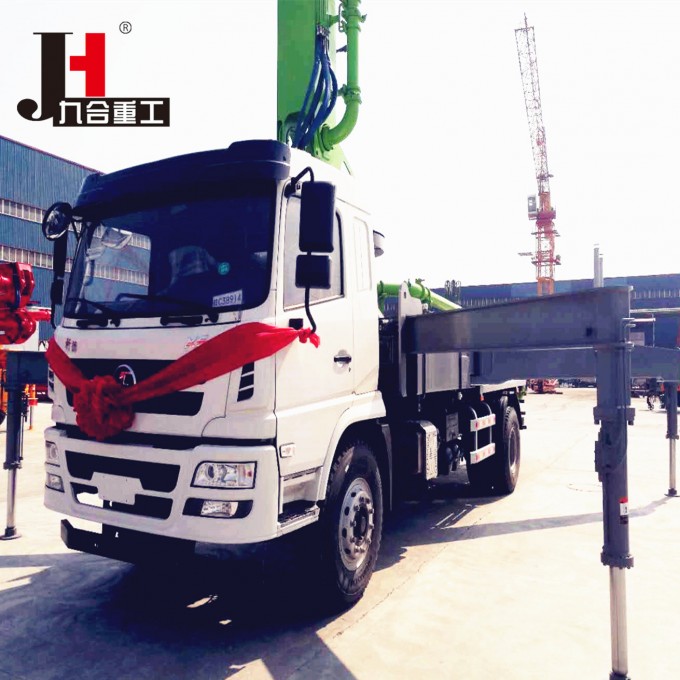

Product picture




Main Advantage




INTELLIGENT

Full Hydraulic Control Technology
Fast fault location ,saving time more than 50% in fault detection ,

Electric control system
Simple operation,easy maintenance,low failure rate,Main electric components adopts Schneider imported from France,high reliability and automation.
Panel control and wireless remote devices are both equipped and easy to operate .Appollo wireless remote controller accords with the principles of human engineering design with attractive appearance ,easy operation and high flexibility ,Multiple alarming devices ensure machine working with high security.


SAFETY

Hydraulic Oil Level Auto-Detection and Radiating Technology
Auto-detect hydraulic oil and temperature ,protecting hydraulic system.

Intelligent Safety Technology
All weld lines by 100% nondestructive flaw detection.


HIGH EFFICIENCY

Full Hydraulic Commutation Technology
Saving commutation time of 10% ,increasing the pumping efficiency of 20%.

Advance jib structure Technology
Flexible and efficient placing,No blind angle.


Energy saving

Double-Engine System
only 40% of oil consumption in the same industry.

Company Information
Jiuhe Heavey Industry is aprofessional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been aglobal famous brand in construction machinery industry.







JiuHe Service
As aprofessional company,we promise as following:

Delivery time:
Within 30workingdays for the standard pump after receipt of ppayment.

Installment:
We will arrange the technician to install and test the equipment, and trainoperation personnel for free. The traveling expense, board and lodging expenses should be assumed by the customer.

After-sales service:
The digital commitment system,clear standards of service and payment basis,value chain covering the whole product life and engineers for global service ensure NO WORRY.

Guarantee time:
12 months after the machine leaves factor.
