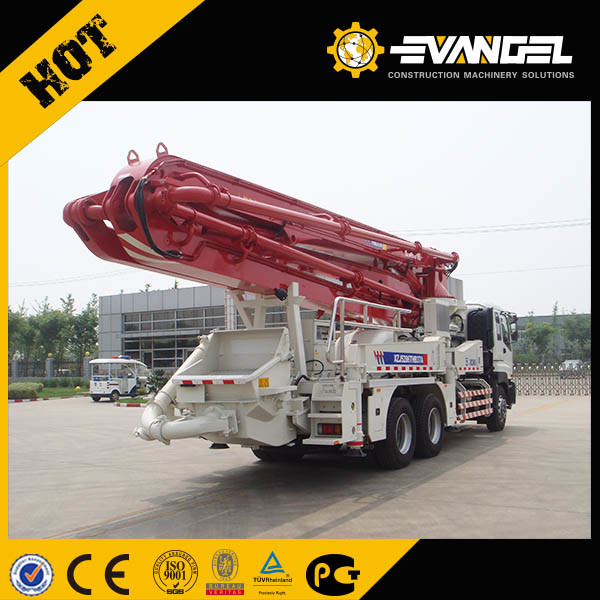

XCM 41M Truck Mounted Concrete Pump HB41(more models for sale)

HB41 concrete pump truck is my company independent research and development with independent intellectual property rights of the new boom concrete pump truck, with "safe, reliable, environmentally friendly, advanced" excellent quality leader in the domestic industry, synchronized with the international advanced technology.
Chassis imported Hino chassis, the chassis for the national phase III emission, high power, high torque, high efficiency and energy saving and off-road ability.
Optimized design of 5sections RZ-arm frame structure and hinge mechanism, with more space to ajob, manipulation is more flexible, long life characteristics.
Front "x" single side Outrigger operation, can be detected in real time position of the legs, effective slewing range of the control arm, pump car work space is relatively small, can not meet the pump truck Outrigger full open, also normal fabric operation.
Key components of international famous brand products, reliable quality and long service life, user maintenance and low cost. Engine fault diagnosis for energy-saving technology, and intelligent anti-tipping modern pumps, such as the use of advanced technology, which greatly improves pump reliability, security, and user's ease of use and maintenance.

Travel
Category	Item		Unit		Parameter
Chassis	Model			FS1ERV	Actros3341	FM
	Manufacturer				Germany
	Max. speed		km/h	85	85	90
	Max. gradeability			46.30%	61.90%	30%
	Min. turning diameter		m	17.8	19.8	18.4
	Brake distance		m	≤7	≤7	≤7
	Wheelbase		mm	4640+1310	4500+1350	4900+1370
	Tread (front/rear)		mm	2050/1855	2034/1804	2019/1834
	Approach angle/departure angle		.	22/10	16/10	18/10
	Min. clearance		mm	245	300	270
	Tyre specification			295/80R22.5	315/80r22.5	12.00R20
Engine	Model			E13C TL	OM501LA.|||/17	D13
	Output power		kw/(r/min)	302/1800	300/1800	294/1800
	Max. torque		N.m/(r/min)	1618/1100	2000/1080	2000/1050
	Displacement		L	12.9	11.946	12.8
	Emission Standard			Nation III GBIII	Nation III GBIII	Nation III GBIII
Other	Dimension (length xwidth xheight)		mm	11100x2500x3990	11060x2500x3990	11350x2500x3990
	Total vehicle weight		kg	30500	30600	31400
	Fuel tank capacity		L	400	400	400
	Fuel consumption per 100km		L/100km	33.3	40	40
Pumping operation
Category		ItemITEM		UnitUNIT	ParameterPARAMETER
Pumping system	Theoretical output(high pssure/low pssure)			m³/h	70/140
	Concrete pumping pssure(high pssure/low pssure)			Mpa	11.8/6.38
	Theoretical pumping times(high pssure/low pssure)			times/min	15/27
	Max. diameter of pumping concrete aggregate			mm	40
	Feeding height			mm	1530
	Pumping slump range			cm
Placing boom	Reach height			m	40.5
	Reach depth			m	27.5
	Slewing radius			m	36
	Slewing angle			.	±270
	1st boom stretch angle			.	90
	2nd boom stretch angle			.	180
	3rd boom stretch angle			.	180
	4th boom stretch angle			.	240
	5th boom stretch angle			.	250
	Outrigger span	Outrigger longitudinal span		mm	7800±50
		Front outrigger transverse span		mm	8350±50
		Rear outrigger transverse span		mm	7200±50
Other	Dosing type				S valve
	Lubricating method				Automatic lubrication
	Controlling method				Manual/remote control
	Water tank capacity			L	600
	Max. pssure of water pump			Mpa	2
