Detailed Description
High quality co
ncrete pump truck manufacturers sales!
1. Main oil pump:Germany REXROTH.
2. Seal parts: American Parker.
3. Main electric parts: OMRo
nor LS electrical devices.
4. Manual switch of high pssure and low pssure is equipped
5. Pipe joints: American Eaton.
6. Intermediate relay:Schneider.
7.Jib structure multiway valve:Italy Comer
8.Hydraulic pipe:American Eaton.
Technical Parameter:
| JH5190THB-30m Concrete Pump truck |
| I. Boom system | | |
| 1 | Maximum vertical height of boom (M) | 30 |
| 2 | Horizontal distribution radius of boom (M) | 25.6 |
| 3 | Depth of distribution (M) | 17.3 |
| 5 | Arm length of the first section (MM) | 7660 |
| 6 | Arm length of the second section (MM) | 6200 |
| 7 | Arm length of the third section (MM) | 5900 |
| 8 | Arm length of the fourth section (MM) | 5800 |
| 9 | Rotating angle of each arm | 90/180/360/540 |
| 10 | Control mode of boom | Electric proportion |
| 11 | Folding type of boom | Mtype |
| 12 | Rotating angle of turret | 470° |
| 13 | Span distance of front landing leg (MM) | 5842 |
| 14 | Span distance of rear landing leg (MM) | 4250 |
| 15 | Longitudinal distance between front and rear landing leg (MM) | 6177 |
| 16 | Opening mode of landing leg | X-H |
| 17 | Length of end hose (MM) | 3000 |
| 18 | Diameter of concrete delivery pipe (MM) | 125 |
| II. Electric Control System | | |
| 1 | Working voltage: | 24 |
III. Hydraulic
transmission system | | |
| 1 | Type of hydraulic system | Open type |
| 2 | System working pssure (Mpa) | 31.5 |
| 3 | Displacement of main hydraulic oil pump (ml/r) | 140 |
| 4 | Hydraulic fuel tank capacity (l) | 420 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 6 | High-low pssure changeover valve | None |
| IV. Pumping system | | |
| 1 | Form of concrete distribution valve | S valve |
| 2 | Maximum concrete outlet pssure (Mpa) | 10.5 |
| 3 | Reversing times of distribution valve | 24 |
| 4 | Inner diameter/stroke of delivery cylinder | 200/1450 |
| 5 | Maximum feeding height (MM) | 1450 |
| 6 | Hopper capacity (M3) | 0.65 |
| 7 | Slump of pumped concrete | 160-220 |
| 8 | Dimension of allowable maximum aggregate (MM) | 40 |
| 9 | Lubricating method | Centralized lubrication |
You can choose the chassis by yourself!
The chassis including SINOTRUK/FOTON/ISUZU/DONGFENG/FAW;
Left or right drive.

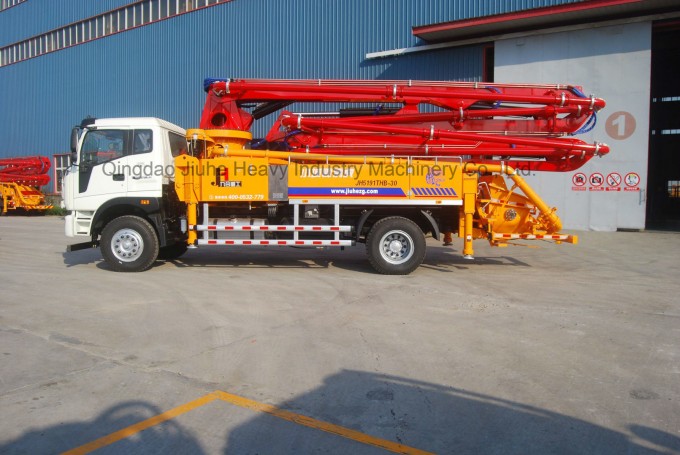

Product Image
