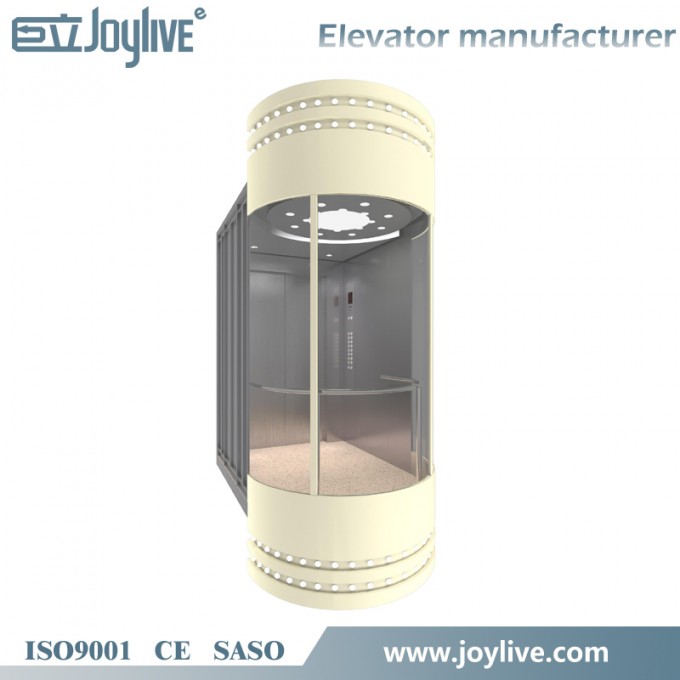

Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating

Product Description
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Product Application
Panoramic elevator have high performance elevator parts, permanent magnet synchronous drive and intelligent door
system, safe and reliable.
Panoramic elevator permanent magnet synchronous traction machine,smaller volume but higher efficiency, saving
more space for the headroom.
Panoramic elevator highest safty standard, to ensure passenger safty.
Panoramicelevator multiple customized for the transportation arrangement and structure for matching the design style ofhouse.
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Cabin




Floor &COP



Decoration

Ceiling	Hairline stainless steel, white acrylic+LED
Cabin panel	Hairline stainless steel Mirror Stainless Steel
COP	Hairline stainless steel
Handrail	Hairline stainless steel
Flooring	Marble

Parameter

Load capacity (Kg)	Rated Speed m/s	Car Dimension CW*CD(mm)	Door Opening Dimension EW*EH(mm)	Standard Shaft Dimension HW*HD(mm)	Max Shaft Dimension HW*HD(mm)	Standard Pit Depth Pd(mm)	Standard top floor heightTh(mm)
630	1	1100×1400	700×2100	2000×2000	3500×2400	1700	4650
	1.5					1750	4700
	1.75					1800	4750
630	1	1100×1600	700×2100	2000×2200	3500×2600	1700	4650
	1.5					1750	4700
	1.75					1800	4750
800	1	1300×1500	800×2100	2200×2100	3700×2500	1750	4650
	1.5					1800	4700
	1.75					1850	4750
800	1	1200×1750	800×2100	2100×2350	3600×2750	1750	4650
	1.5					1800	4700
	1.75					1850	4750
1000	1	1500×1500	900×2100	2400×2100	3900×2500	1800	4700
	1.5					1850	4750
	1.75					1900	4800
1000	1	1300×1900	900×2100	2200×2500	3700×2900	1800	4700
	1.5					1850	4750
	1.75					1900	4800
1250	1	1600×1700	1000×2100	2500×2300	4000×2700	1900	4800
	1.5					1950	4850
	1.75					2000	4900
1250	1	1500×2000	1000×2100	2400×2600	3900×3000	1900	4800
	1.5					1950	4850
	1.75					2000	4900

Elevator Parts

Joylive Traction Machine
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Integrated and ultra thin design for hub and spoke.
More flexible allocation for traction machine.
Joint test with international authority, ensure good quality of products.
Brakeage Self-Test Technology, ensure reliable brake action.

Cube Pro
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Intelligent control system.
Modularization cabinet design configuration .
Adopting CAN-BUS to transmitdata between control accurancy and reliability.
One-click hoist self-learning system.
Cary advanced internet of things intelligent system.
Remote online technology service.

Intelligent door system
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Totally comply with European Latest Standard.Adopting permanent magnetsynchronous door machine, optimized structural
design.High-intensity door plate and door plate anti-drop device, decrease effectively
human-caused destruction risk for door systemRe-Leveling Function, leveling pcision is within 10mm.

Packing & Delivery
Packing Details :
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
Fumigated Wooden Case or Fumigation-free Plywood or Case forHydraulic Glass Panoramic ElevatorComponent
10 person high speed square glass panoramic elevator
PanoramicElevator Lift With Stable System For Office Building Using
Delivery Details : within 20 days after the payment.
Traction Vvvf Circular Panoramic Passenger Elevator with Horizontal Rotating
about Joylive

Joylive Elevator Co., Ltd. was founded in Kunshan city, Jiangsu province in 2002.
After more thana decade'sdevelopment,Joylive has become a famous brand with the enterprise
conception of "Intelligence, Environmental-Friendliness and Supme Service" in the industry.

We have innovated in series of product solutions and services with unique characteristics:

Joylife-- Residential Passenger Elevator

Joycity- Commercial Passenger Elevator

Joyvilla--Villa Customized Elevator

Joylogi--Freight Elevator for LogisticsTraction Vvvf Circular Panoramic Passenger Elevator with Horizontal RotatingFactory Show

Quality Control
Residential Glass Elevator Lift High Tech Competitive Price
Home Elevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found pcision
detection experimental center.
HomeElevator followed international QC management to elevator production, we set rigorous manufacturing standardsof Hosting Elevator to make sure every elevator remarkable.
10 person high speed square glass panoramic elevator

Multiply Products
Residential Glass Elevator Lift High Tech Competitive Price
Home Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.
Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.

Safety First
Residential Glass Elevator Lift High Tech Competitive Price
High Safety Standard ensured for any Accidents occurs.ISO9001:2000 quality and CE marking certification systems.
10 person high speed square glass panoramic elevator
