Hospital Bed Elevator/Passenger Elevator Cost of En81 Technology

Product Description
Product Name:Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Hospital elevator have high performance elevator parts, permanent magnet synchronous drive and intelligent doorsystem, safe and reliable.
Hospital elevator permanent magnet synchronous traction machine,smaller volume but higher efficiency, savingmore space for the headroom.
Hospital elevator highest safty standard, to ensure passenger safty.
Hospital elevator multiple customized for transportation arrangement and structure for matching design style ofhouse.
Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology

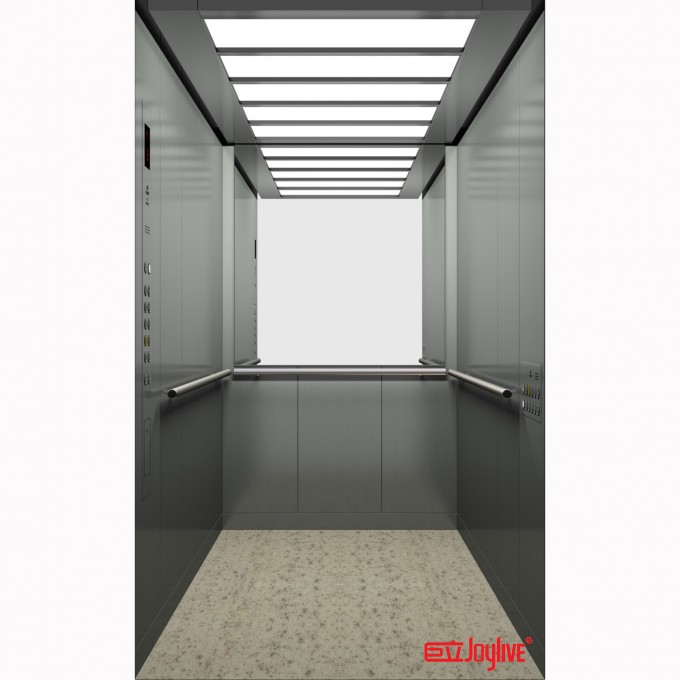

Cabin

Decoration

Ceiling	Hairline stainless steel, white acrylic+LED
Cabin panel	Hairline stainless steel Mirror Stainless Steel
COP	Hairline stainless steel
Handrail	Hairline stainless steel
Flooring	Marble

Parameter

Load capacity (Kg)	Rated Speed m/s	Car Dimension CW*CD(mm)	Door Opening Dimension EW*EH(mm)	Standard Shaft Dimension HW*HD(mm)	Max Shaft Dimension HW*HD(mm)	Standard Pit Depth Pd(mm)	Standard top floor height Th(mm)
1600	1	1400×2400	1200×2100	2300×2900	3800×3500	1400	4450
	1.5					1450	4500
	1.75					1450	4600
1600	1	1400×2400	1200×2100	2300×3050	3800×3150	1400	4450
	1.5					1450	4500
	1.75					1450	4600
1600	1	1400×2400	1200×2100	2600×2800	4100×3400	1400	4450
	1.5					1450	4500
	1.75					1450	4600
1600	1	1400×2400	1200×2100	2600×2900	4100×3000	1400	4450
	1.5					1450	4500
	1.75					1450	4600

Elevator Parts

Joylive Traction Machine

Product Name:Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Integrated and ultra thin design for hub and spoke.
More flexible allocation for traction machine.
Joint test with international authority, ensure good quality of products.
Brakeage Self-Test Technology, ensure reliable brake action.

Cube Pro

Product Name:Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Intelligent control system.
Modularization cabinet design configuration .
Adopting CAN-BUS to transmitdata between control accurancy and reliability.
One-click hoist self-learning system.
Cary advanced internet of things intelligent system.
Remote online technology service.

Intelligent door system

Product Name:Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Totally comply with European Latest Standard.Adopting permanent magnetsynchronous door machine, optimized
structuraldesign.High-intensity door plate and door plate anti-drop device, decrease effectively
human-caused destruction risk for door systemRe-Leveling Function, leveling pcision is within 10mm.
Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Packing & Delivery
Packing Details : Fumigated Wooden Case or Fumigation-free Plywood or Case forPrice for medical hospital bedelevator lift.
Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
Hospital Elevator Lift With Stable System For Office Building Using
Delivery Details : within 20 days after the payment.
Product Name:Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology

Our Exhibition


Our Cetification

about Joylive
Joylive Elevator Co., Ltd. was founded in Kunshan city, Jiangsu province in 2002.
After more thana decade'sdevelopment,Joylive has become a famous brand with the enterprise
conception of "Intelligence, Environmental-Friendliness and Supme Service" in the industry.

We have innovated in series of product solutions and services with unique characteristics:

Joylife-- Residential Passenger Elevator

Joycity- Commercial Passenger Elevator

Joyvilla--Villa Customized Elevator

Joylogi--Freight Elevator for Logistics

Joylive-- Hospital ElevatorJoylive-- Escalator and Moving walking
Hospital Bed Elevator/Passenger Elevator Cost of EN81 Technology
FAQ

Q: Why do you choose Joylive hospital elevator?

1. "One-stop" service mode
2. Guarantee high-quality hospital elevator products
3. Pay attention to installation and after-sales service
4. Timely maintenance management with Professional knowledge and Responsibility
5. Intelligent Manufacturing & Smart Services

Q: What advantages do youhave ?

1. Low MOQ: It can meet your promotional business very well.
2. Good Service: We treat clients as friend.
3. Good Quality: We have strict quality control system .Good reputation in the market.
4.. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).Thank You For Your Watching, Please Send Your Kind Inquiry! O(∩_∩)O
