China Machine Roomless Passenger Elevator Lift with Low Cost

Website:www.joylivelift.com
Product Description
China Machine Roomless Passenger Elevator Lift With Low CostPassengerelevator are designed for different types of residential buildings, villas residential, office buildings.
Passenger elevator for homes have high performance elevator parts, permanent magnet synchronous drive and intelligent
doorsystem, safe and reliable.
Passenger elevator for homes permanent magnet synchronous traction machine,smaller volume but higher efficiency, saving
more space for the headroom.
Passenger elevator highest safty standard, to ensure passenger safty.Passenger elevator multiple customized for the transportation arrangement and structure for matching design style of house.

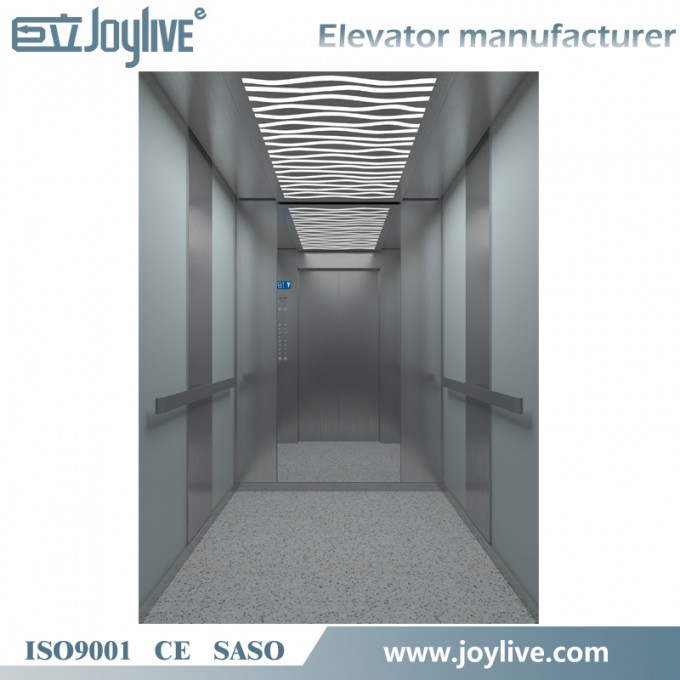

Cabin


Decoration

Ceiling	Hairline stainless steel, white acrylic+LED
Cabin panel	Hairline stainless steel Mirror Stainless Steel
COP	Hairline stainless steel
Handrail	Hairline stainless steel
Flooring	Marble

Parameter

Load capacity (Kg)	Rated Speed m/s	Car Dimension CW*CD(mm)	Door Opening Dimension EW*EH(mm)	Standard Shaft Dimension HW*HD(mm)	Max Shaft Dimension HW*HD(mm)	Standard Pit Depth Pd(mm)	Standard top floor height Th(mm)
630	1	1100×1400	700×2100	1850×1850	2550×2450	1500	4250
	1.5					1550	4350
	1.75					1600	4400
630	1	1100×1400	700×2100	1850×1900	2550×1900	1500	4250
	1.5					1550	4350
	1.75					1600	4400
800	1	1350×1400	800×2100	2100×1850	2800×2450	1500	4250
	1.5					1550	4350
	1.75					1600	4400
800	1	1350×1400	800×2100	2100×1900	2800×1900	1500	4250
	1.5					1550	4350
	1.75					1600	4400
1000	1	1600×1400	900×2100	2350×1850	3050×2450	1500	4250
	1.5					1550	4350
	1.75					1600	4400
1000	1	1600×1400	900×2100	2350×1900	3050×1900	1500	4250
	1.5					1550	4350
	1.75					1600	4400
1150	1	1800×1400	1100×2100	2700×1800	3400×2400	1500	4350
	1.5					1550	4450
	1.75					1600	4500
1250	1	1900×1500	1100×2100	2800×1900	3500×2500	1500	4350
	1.5					1550	4450
	1.75					1600	4500
1350	1	1900×1600	1100×2100	2800×2000	3500×2600	1500	4350
	1.5					1550	4450
	1.75					1600	4500
1600	1	2000×1800	1100×2100	2900×2200	3600×2800	1500	4350
	1.5					1550	4450
	1.75					1600	4500
1600	1	1800×1800	1000×2100	2700×2300	3400×2300	1500	4350
	1.5					1550	4450
	1.75					1600	4500

Elevator Parts

Joylive Traction Machine

Product Name:China Machine Roomless Passenger Elevator Lift With Low Cost
Integrated and ultra thin design for hub and spoke.
More flexible allocation for traction machine.
Joint test with international authority, ensure good quality of products.
Brakeage Self-Test Technology, ensure reliable brake action.

Cube Pro

Product Name:VVVF Qualified Passenger Lift Elevator En81 Standard
Intelligent control system.
Modularization cabinet design configuration .
Adopting CAN-BUS to transmitdata between control accurancy and reliability.
One-click hoist self-learning system.
Cary advanced internet of things intelligent system.
Remote online technology service.

Intelligent door system

Product Name:1000kg Machine Room Luxury Passenger Elevator lift For Hotel Series
Totally comply with European Latest Standard.Adopting permanent magnetsynchronous door machine, optimized structural
design.High-intensity door plate and door plate anti-drop device, decrease effectively
human-caused destruction risk for door systemRe-Leveling Function, leveling pcision is within 10mm.

Packing & Delivery

Packing Details :
China Machine Roomless Passenger Elevator Lift With Low Cost
Fumigated Wooden Case or Fumigation-free Plywood or Case forOutdoor home mini elevator lift machine
Cheap Small Home Hydraulic Lift Elevator For Elder
HomeElevator Lift With Stable System For Office Building Using
Delivery Details : within 20 days after the payment.
Product Name:VVVF Qualified Passenger Lift Elevator En81 Standard

Factory Show

Product Name:China Machine Roomless Passenger Elevator Lift With Low Cost

PassengerElevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found pcision
detection experimental center.
Passenger Elevator followed international QC management to elevator production, we set rigorous manufacturing standards
of Hosting Elevator to make sure every elevator remarkable.

Multiply Products

Passenger Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.
Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.

Safety First

High Safety Standard ensured for any Accidents occurs.ISO9001:2000 quality and CE marking certification systems.
