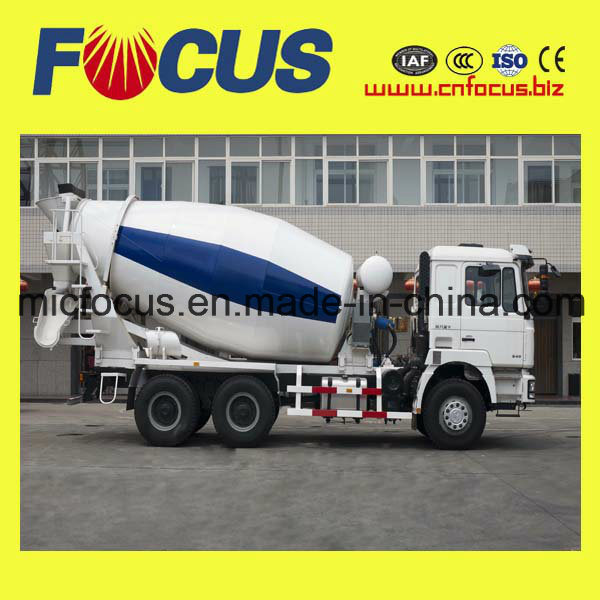

Competitive Quality Factory 8cbm Automatic Concrete Mixer Truck

Competitive Quality Factory 8cbm Automatic Concrete Mixer Truck

FOCUSconcrete truck mixer:
∑HINO,HOWO chassis available;
∑Germany ZFP reducer, 12 months warranty;
∑ISO and CE certifiedconcrete truck mixer.


1.Product Specification

Model		8m³	9m³	10m³	12m³	14³
Truck	Chassis	HINO	HINO	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(kg)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14

2.What are the main features of FOCUS Concrete Truck Mixer?
®Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our mixer truck.

®Pump, motor and reducer in FOCUS mixer truck are all original imported AMERICA static pssure driving system with big driving torque and high efficiency.

®imported hose and connector are separately from GERMANY EMB and ITALY MANULI.

®Hose buckling device is totally from GERMANY HYDAC.

®Stirring vat auto-welding improves FOCUS mixer truck production efficiency and makes welding quality finer.

®Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our mixer truck.

®Fault indicator for the mixer truck can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.

®Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
