Inner Rotor Traction Machine Passenger Lift/Elevator

UNIQUE FEATURE--

High Quality And Noble Honor
Under the profund influence of the GERMAN brand. LGEER elevator adheres to the concept of manufacturing sophisticated elevator,gaining consistent high phraise from industry market and government.
We only Produce Ecological Lifts
A: Energy feedback technology
Energy feedback tech can feed back this part of energy to electric grid.It supplies other electrical equipments.
At psent, over 90% of elevators waste this part of energy by the form of resistance heating.
B:Intellectual Computing Group-supervision System
It greatly reduces the passengers' waiting time, saves the electric energy of the elevator back and forth.It thus cuts down the operational cost .
Trust Worthy Technology
A:Permanent magnet synchronous gearless traction machine
B:Durable,Variable frequency door machine system
C:Stable VVVF frequency changer
Small Machine Room Passenger Lift
LGEER small machine room passenger elevator applies the rational construction layout. Machine room's size same as the shaft size. It effectively saves 50% of machine room area.
High Speed Lift
LGEER applies the novel style shock-aborbing devices
A shock-absorbing device that installed between the elevator car and car frame. It nicely removes any vibration in the elevator operation process and ensures that elevator will running smoothly and comfortably.

PAEAMETER OF LIFT--

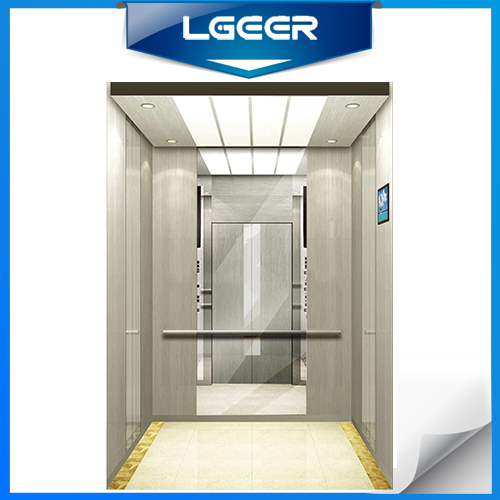

Decoration Type: LG-K

Standard	Optional
Ceiling: Hairline Stainles Steel arch roof,acrylic lighting decoration,enerdy-saving lighting system	Ceiling: Mirror St/St,white acrylic plate,LED spotlight
Car Wall: Hairline St/St , Center of back wallMirror Etching	Call Wall:Mirror St/St
Car Door: Hairline St/St	Handrail:Hairline St/St Circular Tube
Floor: Water Mosaic Marble	Floor:PVC floor

Specifications:

Load (kg)	Speed (m/s)	CarSize (mm)	Door Size(mm)	Hoistway Size W*D(mm)	Machine Room Size W*D(mm)			Overhead Height(mm)	Pit Depth(mm)
630	1.0	1400*1100	800	2000*1800	Passenger Elevator		Small machine Room	4500	1500
	1.5				3300*3500		2000*1800	4600	1600
	1.75							4700	1700
	2.0							4900	2000
800	1.0	1400*1350	800	2000*2000	3000*3800		2000*2000	4500	1500
	1.5							4600	1600
	1.75							4700	1700
	2.0							4900	2000
	2.5			2050*2050	3000*3800		2050*2050	5500	2500
1000	1.0	1600*1500	900	2200*2200	3400*4100		2400*2300	4500	1500
	1.5							4600	1600
	1.75							4700	1700
	2.0							4900	2000
	2.5			2600*2200	3500*4100		2450*2300	5500	2500
	3.0			2700*2200	3600*4200		2600*2550	5800	3200
	4.0							6000	3400
1250	1.0	1900*1400	1100	2500*2200	3400*4100		2400*2300	4500	1500
	1.5							4600	1600
	1.75							4700	1700
	2.0							4900	2000
	2.5			2600*2200	3500*4100		2450*2300	5500	2500
	3.0			2700*2300	3600*4200		2600*2550	5800	3200
	4.0							6000	3400
1350	1.0	1900*1550	1100	2500*2350	3600*4100		2500*2350	4500	1500
	1.5							4600	1600
	1.75							4700	1700
	2.0							4900	2000
	3.0			2700*2500	4000*4500		2700*2500	5000	2500
	4.0			2800*2600			2800*2600	5500	3000
	5.0			2900*2700			2900*2700	6000	3500
	6.0			3000*2800			3000*2800	6500	4500
1600	1.0	1900*1800	1100	2600*2500	3600*4500		2600*2500	4500	1500
	1.5							4600	1600
	1.75							4700	1700
	2.0							4900	2000
	3.0			2700*2700	4500*5000		2700*2700	5000	2500
	4.0			2800*2800			2800*2800	5500	3000
	5.0			2900*2900			2900*2900	6000	3500
	6.0			3000*3000			3000*3000	6500	4500

Passenger Elevator Founctions:

A:Travel Founction:

VVVF Door Operator(S)	Independent Running(S)
Automatic Pass Without Stop(S)	Automatically Adjust Door Opening Time(S)
Reopen with hall call(S)	Expss Door Closing(S)
Car Stops And Door Open(S)	Car Arrival gong(S)
Command Register Cancel(S)	Anti-Nuisance(O)
Open The door in advance(O)	Direct Parking(O)
Group Control Function(O)	Duplex Control(O)
On-duty Peak Service(O)	off-duty Peak Service(O)
Door open time extending(O)

B:Man-machine interface

Micro-touch button for car call and hall call(S)	Floor and direction indicator inside car(S)
Voice announcer(S)	Car assitant operation Box(O)
Operation box for the handicapped(O)	Intellingent calling Service(O)
IC card Control function(O)

C:Safety Founction

Light Curtain(S)	Designed Stop(S)
Overload Holding Stop(S)	Anti-stall timer protection(S)
Start protection control(S)	Inspection Operation(S)
Fault self-diagnosis(S)	Repeat door closing(S)
Up/down over-speed limited protection(S)	Down over-speed protection device(S)
Upward over-speed protection(S)

ROUTINE WORK--



SERVICE SYSTEM--
Zero defect of the products, zero complaint in use , zero trouble in service
Long-distance monitor and 24-hour continous service .When there is something wrong with the elevator in running, it reaches the site as soon as possible.
It carefully produces after-sale repair&maintenance staff , the advanced repair & maintenance tech so that the clients can rest assured in using LGEER elevators.
