Koyo Passenger Elevator with Low Price Ard From Factory

Name:KOYO passenger elevator with low price ARD from factory

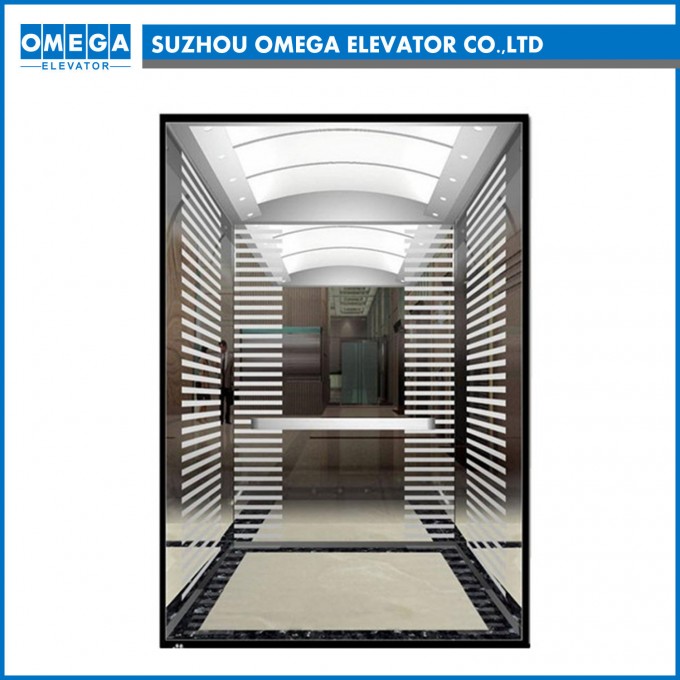

Cabin Wall: mirror etchingfinish
Ceiling: hair lineStainelss steel acrylic lighting
Handrail: Flat Hairline stainless steel
Floor: PVC / MARBLE

Elevator	Capacity	Speed	Cabin and Door Decoration
Passenger Elevator	320kg~1600kg	MR:V≤4.0m/s MRL: V≤2.5m/s	Standard: Mirror Hairline SS Cabin, cabin door and main landing door: Mirror hairline stainless steel other landing door: Hairline steel
			Optional: Mirror stainless steel Etching stainless steel Golden mirror etching finish etc.

Standard functions

No.	Function	No.	Function
1	Collective Selective	24	Door lock stop when running
2	Close door interrupted auto return	25	Level adjust
3	Overload Alarm	26	Auto stop
4	Full load bypass drive	27	Floor signal auto-amend
5	Motor overheat protect	28	Door switch protect
6	Machine room emergency electric operation	29	Anti-slid protect
7	Top floor terminal protect	30	Door switch button
8	Car display	31	Landing door/car door lock at certain period
9	Reset Running	32	Landing door open at psent floor
10	Car emergency lightening	33	Speed feedback
11	Car top inspection	34	Reverse running protect
12	Door close time extending protect	35	Shaft position self study
13	5 part interphone	36	Brake feedback inspection
14	Reverse direction register cancel	37	Standby switch
15	Car Alarm bell	38	Car lightening and fan control
16	Fault register cancel	39	Fault self-diagnosis
17	CPU self protect	40	Running direction signal
18	Auto level	41	Fault history record
19	CAN communication protect	42	Service floor setting
20	Fault auto level	43	Floor display setting
21	Level switch protect	44	Auto return main floor
22	Low speed protect	45	Auto return main floor when fire alarm
23	Shaft self-study diagnosis	46	Contactor feedback detection

Capacity	Speed	Cabin Size			Shaft Size					Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)
630	1	1400	1150	800*2100	2000	1800	1500	4500	2300	50	2.7
	1.5						1600	4600		70
	1.75						1700	4700		90
800	1	1350	1400	800*2100	2000	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2050	2100	1900	5000	2500	100
	2.5						2100	5200		120
1000	1	1600	1400	900*2100	2200	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2300	2100	1900	5000	2500	100
	2.5						2100	5200		120
1150	1	1800	1400	1000*2100	2400	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2500	2150	1900	5000	2500	100
	2.5						2200	5200		120
1350	1	2000	1500	1100*2100	2600	2200	1500	4500	2500	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2700	2250	1900	5000		100
	2.5						2200	5200		120
1600	1	2000	1700	1100*2100	2600	2400	1500	4600	2500	50
	1.5						1600	4700		70
	1.75						1700	4800		90
	2				2700	2450	1900	5100		100
	2.5						2200	5300		120

Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.

about Omega Elevator Co., Ltd.
As a professional manufactory of elevator products, Including elevator, especially elevator automatic door system and semi-automatic door and elevator cabin and full elevator, and related spare parts. Our automatic door main type include Fermator, Selcom and Mitsubishi. So far we have been a partner with customers from Europe, USA, South America, Middle East, etc.

We own one excellent team dedicated in elevator industry. Each of these professionals is guaranteed to provide direct and complete support. And we have kept long and good business relationships with lots of accessory manufacturers and suppliers.

Weexpecttobeyourstrongpartnerandcreatehighvalue-addedandqualityproductstoyou.



OUR FACTORY


Packing & Delivery
Packing Details :
Fumigated Wooden Case or Fumigation-free Plywood
Delivery Details : within 25 days after the payment.
