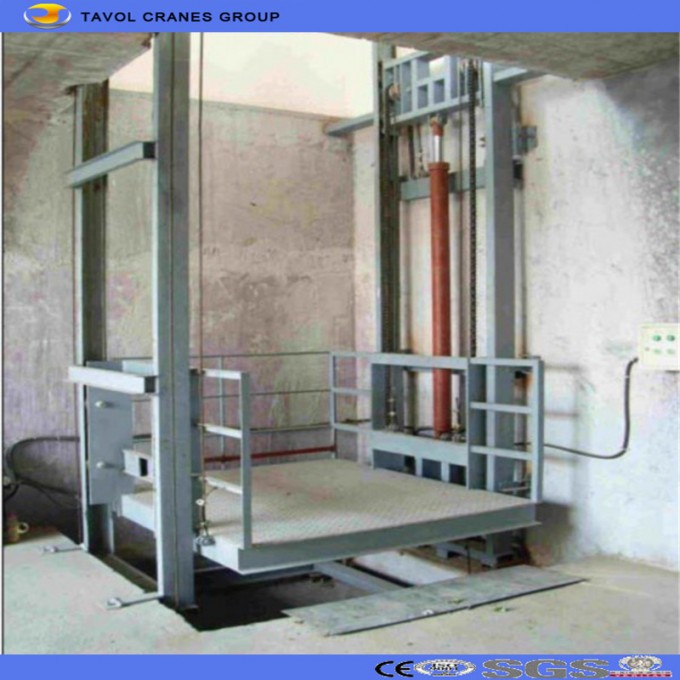

Sjd0.5-10 Vertical Goods Lift Hydraulic Guide Rail Elevator

Sjd0.5-10 Hydraulic Guide Rail Elevator

Advantages:
1.Equipped single side or double sides hydro cylinder to keep the machinery works smooth and
steady with noiseless, it is convenient and long working life.
2.safe manual operation in case of black out,emergence stop can give protection when some
urgency happened.
3.the pit should be 15-30cm,the height of the top is unlimited.
4.custom made according to the multistoried building.
5.imported and domestic pump is optional.
6.Hydro-cylinder and sealing element adopt imported parts.
7.imported controlling system is optional(Schneider,Siemens,ect)

Safety:
Hydraulic elevators not only have all safety device of the traditional elevator,but also have the
special safety system hereinafter.
1.Spillover valve, it can pvent high pssure when the machine moves up.
2.Manual emergency valve,it can go down to the nearest floor and open the door when you meet an
emergency.
3.Pipe fracture valve,when the hydraulic system pipe fracture, it can cut down the channel of the oil
to stop the falling.
4.Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will
stop working until the temperature reverts to the safe standard.
5.Manual pump: it can move up the nearest floor and open the door when you meet an emergency.

SJD Fixed Guide Rail Elevator:

Model	Platform Size(mm)	Load Capacity(kg)	Lift Height(m)	Self Height(mm)	Motor Power(kw)
SJD0.5-2.5	1500*1500	500	2.5	100	2.2
SJD0.5-10	2000*3000	500	10	120	3.0
SJD1-3.5	1400*1300	1000	3.5	120	3.0
SJD1.5-5.5	2000*2000	1500	5.5	150	4.0
SJD2-4	2700*1800	2000	4.0	150	4.0
SJD3-8	2500*2500	3000	8.0	180	5.0
SJD5-15	2500*2500	5000	15.0	180	7.5
SJD10-7	4500*3500	10000	7.0	280	7.5

Package and shipping:
Package:plywood case outside will be packed around freight elevator formaximum protection in
transit.
Shipping: 20days after advance payment


Professional service is supplied:
1-Oneyearwarrantyforwholemachines.

2-Providingfreequick-wearpart.

3-Lowchargeforcontinuemaintenancewhenwarrantyisexpired.

4-Exclusiveengineersupportatanytime.

5-Wecanprovidefreetrainingtoend-users
