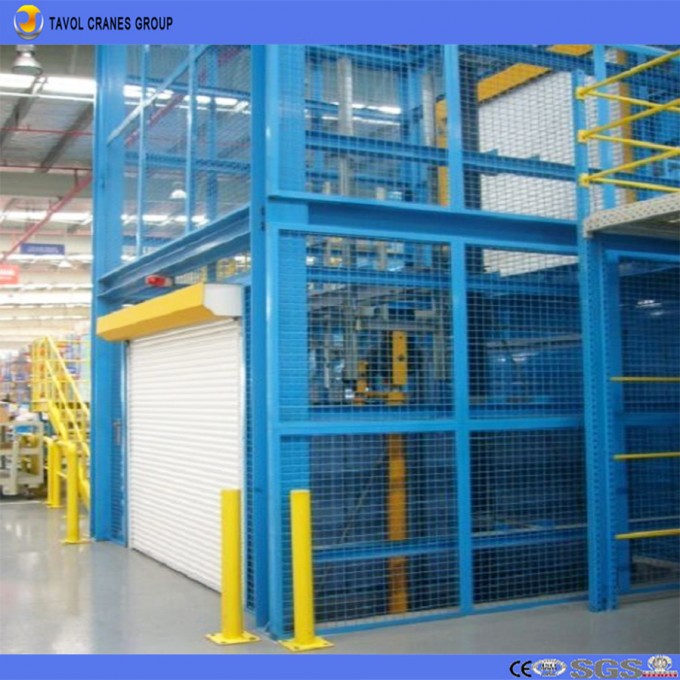

Sjd1-3.5 Hydraulic Indoor and Outdoor Use Guide Rail Cargo ElevatorIntroduction: Statio
nary lead rail lift provides fast, efficient, co
nvenient and safe access to mezzanines
,balconies, ba
sements and any levels in multistoried building. It can be installed indoor or outdoor.
It is suitable for wher
e can not be dig the pit.
Any customer-made specification is acceptable, pls feel free to co
ntact with us!
Advantages:Hydraulic cargo lift not o
nly have all safety device of the traditio
nal elevator, but also have
thespecial system
.1.Platform
Anti-akid, which can aviode the material falling down
2.Control panel
It is with UP, DOWN and E-stop buttons, when there is any emergency, you can pss the E-stop
down, then the table will stop working
3.Explosion proof value
Protect hydraulic pipe ,anti-hydraulic pipe rupture
4.Spillover value
It can pvent high pssure when the machine moves up. Adjust the pssure
5. Emergency decline value
It can go down when you meet an emergency
6.Oil temperature protection
When temperature of oil is overheat, there is signal given out, stop the lift when temperature get
normal, start again
7.Overload warning device.
When the cargo on the platform is over the capacity of the lift, the warning light will work.
8. Others
Phase lack &phase dislocation protection
9. Low failure rate
Adopts advanced hydraulic system and good control method, the failure will be avoided at the
utmost.
10. Low power consumption
When the hydraulic platform declines, it is drive by pssure of self-weight, can save energy
significantly.
11.Safety rope
It can run with the chain to protect the stability and safety of the lift.
Different models are supplied:| Model | Platform Size(mm) | Load Capacity(kg) | Lift Height(m) | Self Height(mm) | Motor Power(kw) |
| SJD0.5-2.5 | 1500*1500 | 500 | 2.5 | 100 | 2.2 |
| SJD0.5-10 | 2000*3000 | 500 | 10 | 120 | 3.0 |
| SJD1-3.5 | 1400*1300 | 1000 | 3.5 | 120 | 3.0 |
| SJD1.5-5.5 | 2000*2000 | 1500 | 5.5 | 150 | 4.0 |
| SJD2-4 | 2700*1800 | 2000 | 4.0 | 150 | 4.0 |
| SJD3-8 | 2500*2500 | 3000 | 8.0 | 180 | 5.0 |
| SJD5-15 | 2500*2500 | 5000 | 15.0 | 180 | 7.5 |
| SJD10-7 | 4500*3500 | 10000 | 7.0 | 280 | 7.5 |
Package and shipping:
Package:wooden package
Delivery time:20days after advance payment
Our service:
1-Oneyearwarrantyforwholemachines.
2-Providingfreequick-wearpart.
3-Lowchargeforcontinuemaintenancewhenwarrantyisexpired.
4-Exclusiveengineersupportatanytime.
5-Wecanprovidefreetrainingtoend-users
Company information:Ourcompanymainlyfocusesondesign,manufacture,installation,maintenance,repair,sales,import
andexport.OurmainproductsareTowerCrane,Construction Hoist, Lift platform
andCraneSpareParts.
WehaveexportedtomaycountriessuchasBangladesh,Vietnam,Thailand,Malaysia,Australia,K
azakhstan,Congo,Ethiopia,Peru,Brazil,EgyptandIcelandandsoon.
WewouldliketosatisfyyourdifferentkindsofrequirementfortheCranesbyourFirstClassQualit
ywithour ExcellentService.
Welcometovisitus!
FAQ:
If you want to inquiry about our product, please inform us the details as below:
-Load capacity? (KG)
-Lift height? (Meter)
-Power supply? Is 415V/50Hz/3P?
-Nearest port? So that we can check the CFR price for you.
