Digital Concrete Truck Scaless with Minimum Maintenance

Digital Concrete Truck Scaless with Minimum Maintenance

Concrete truck scales, concrete weigh bridge, digital concrete truck scales

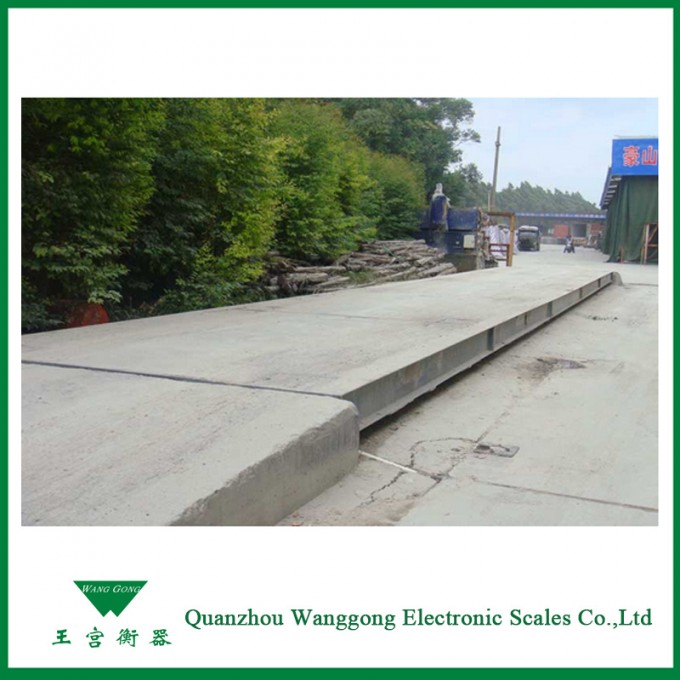

Looking for immense load bearing strength with minimum of maintenance, then a concrete deck truck scale is the ideal choice for you. The concrete truck scales is widely used in steel, pottery, coal, asphalt plant, transport & logistics and related heavy industries.
*Longer life
*No rusting, no repainting, thus its maintenance free
*Most economical, more stable
*Less vibration leads to higher life of load cells
*Low cost of construction

Main components:Weighing displaybridge-type load cellJunction boxPanasonic printer (optional accessory)LCD displayPit type truck scales VS pit-less type truck scales
Pit type model requires less space & has the benefit of free vehicle movement. Pit type truck scale is most suitable for places with limited space e.g non-hilly areas where the construction of pit is not s costly affair. Since the platform is in level with the ground, vehicles can approach the truck scales from any direction. Most public truck scales pfer this design.

Pit-less model have the benefit of less civil work, easy maintenance & no water logging problems. Pit-less type truck scales/weighbridge is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. This type of weighbridge requires more spaces.

The benefit of pit-less weigh bridges are:
Costly pit construction is eliminated
Platform above ground level, no water logging during rainy season
Problem of pit maintenance is eliminated
Easy maintenance since all parts accessible above ground level

We also supply heavy duty vehicle scales with a checkered steel deck driving surface. This rugged scale is ideal for user who requires long-lasting performance for moderate to heavy traffic and axle loads.

Model	Max weighing	Division	Counts	Size	Accuracy grade
SCS-10	10 tons	5kg	2000n	2*4 m	OIML III
SCS-20	20 tons	10 kg	2000n	3*5 m	OIML III
SCS-50	50 tons	20kg	2500n	3*7 m	OIML III
SCS-50	50 tons	20 kg	2500n	3*8 m	OIML III
SCS-60	60 tons	20 kg	3000n	3*9 m	OIML III
SCS-60	60 tons	20 kg	3000n	3*10 m	OIML III
SCS-80	80 tons	40 kg	2000n	3*12 m	OIML III
SCS-80	80 tons	40 kg	2000n	3*14 m	OIML III
SCS-100	100 tons	40 kg	2500n	3*16 m	OIML III
SCS-120	120 tons	40 kg	3000n	3*18 m	OIML III
SCS-150	150 tons	50 kg	3000n	3.2*18 m	OIML III
SCS-200	200 tons	100 kg	2000n	3.4*20 m	OIML III
SCS-300	300 tons	100 kg	3000n	3.6*24 m	OIML III

**Remark: Tailor made according to your requirement is available**
**Counts=Max weighing/division***

Our main products include: truck scale, weighbridge, floor scale, bench scale, platform scale, livestock scale, buffer scale, hopper weighing scale, crane scale, belt scale and related weighing instruments.For more information, please contact us.
