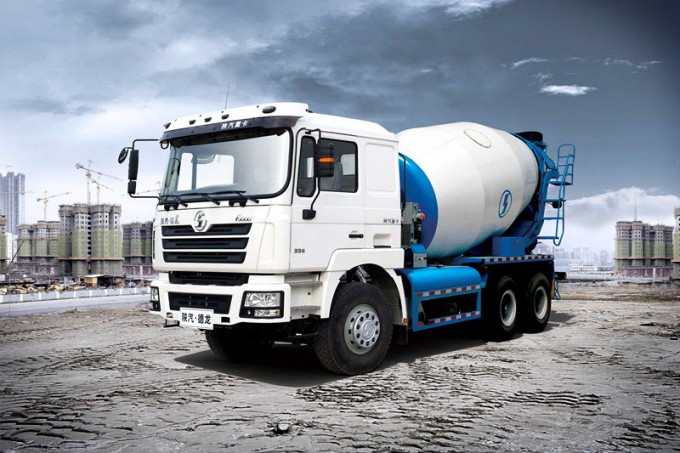

Shacman F3000 6X4 10m3 Concrete Mixer Truck

Shacman 10 Wheeler 10m3 Concrete Mixer Truck
Drive type 6×4
Cabin New F3000 cabin, with air condition, with sleeper
Engine ( WEICHAI, Euro 3 ) WP10.340E32
340HP
Transmission 9JS119, 9 forward gears, 1 reverse gears
Overall Dimension (mm) 9135× 2500× 3900mm
Loading capacity (kg) 30000kg~35000kg
frame (mm) 850× 300(8+7)
Wheel base (mm) 3775+1400
Front axle 7.5T MAN
Rear axle 16 Ton MAN technology Final ratio: 5.262
Steering ZF technology
Clutch Φ 430mm Diaphragm type
Tire Radial tire 12.00R20
Max. Speed (km/h) 83
Fuel tanker capacity (L) 300L
Tank volume (m3) 10m3
Reducer Italy TOP P68
Pump and motor Eton 089 pump and motor

Shacman F3000 6×4 10m3 mixer Truck
Drive type	6×4
Cabin	New F3000 cabin, with air condition
Engine (WEICHAI,Euro3)	WP10.340E32
	340hp
Transmission	9JS119, 9 forward gears, 1 reverse gears
Overall Dimension (mm)	9135×2500×3900(L×W×H)
Loading capacity (kg)	30000kg~35000kg
frame (mm)	850×300(8+7)
Wheel base (mm)	3775+1400
Front axle	7.5T MAN
Rear axle	16 Ton MAN technology Final ratio: 5.262
Steering	ZF technology
Clutch	Φ 430mmDiaphragmtype
Tire	Radial tire 12.00R20
Max. speed (km/h)	83
Fuel tanker capacity(L)	300L
Tank volume (m3)	10m3
Reducer	Italy TOP P68
Pump and motor	Eton 089 pump and motor
