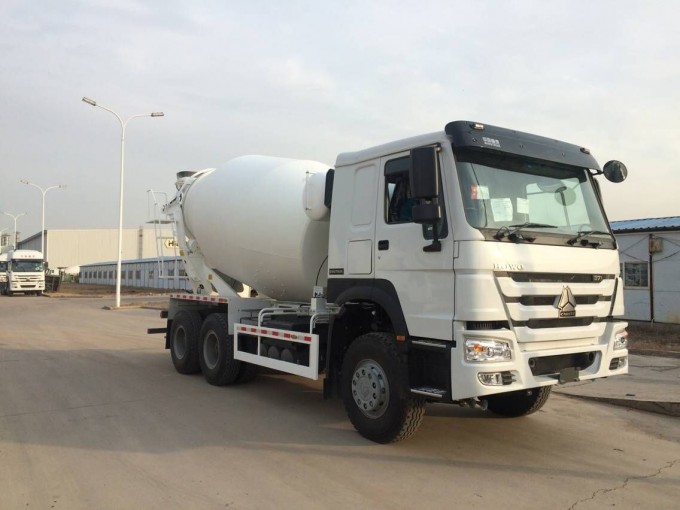

Sinotruk 6x4 371HP HOWO Concrete Mixer Truck (9cube)

1. based on hundreds of experiments of discharging rate, charging rate, mix rate, twist spring, running performance and absorbability of the experience of the mechanical design, manufacture, welding, we have produced the CLW concrete mixer which is the ideal transportation equipment for the commercial concrete,

2. There are various choices ranged from 8cbm, 9cbm, 10cbm, 12cbm for the customers. We can choose the well-known chassis from the Europe, Japan, Chinese with powerful drive

3. Moreover, the oil pump, motor, and the condenser is adopted the famous foreign production to ensure the quality

4. The production above are just for reference, please contact the sellers without any hesitation if you need the specific affairs requested.

Cabin	D310 Flat standard roof cab semi-floating rear overhang mechanical damping, hydraulic machinery turning
Vehicle Main Dimensions	L× W× H(mm)		7920× 2500× 3030
	Wheel base(mm)		3650
	Wheel track (mm)		1986/1860
	Approach/Departure angle		25/30
Weight in KGS	Tare Weight		33000
	Loading Capacity		23000
	Front axles loading capacity		7000
	Rear axles loading capacity		13000× 2
Max. Drinving Speed (km/h)			80
Engine	Brand		SINOTRUCK
	Model		L340 30
	Type		In-line, Turbocharged, armed-type injection pump.
	Horse Power(HP)		340 HP
	Emission Standard		Euro II
Axle	HC16, overall cast steel axle and Han Ruisen disconnect suspension
Gearbox	9JS150T-B 9 forwards+1 reverse
Clutch	Reinforced diaphgragm clutch, diameter 430mm
Steering Gear	ZF8098, original made in German. Power steering, hydraulic steering with power assistance.
Fuel Tank(L)	200L
Tire	6 pieces 11.00-20 bias tire
Brakes	Service brake: Two-circuit air pssure braking; Parking brake: Air pssure braking; Exhaust brake: Air pssure braking
Dump Body
Dump Body Size		8800 mm+2495mm+3880mm
Mixing capacity		9m³
mixing tube angle		13°
Feed speed		3 m³ /min
Output material Speed		≥ 2 m³ /min
Thickness		Cylinder wall 5mm, Head thickness 8mm.
Material residual rate		< 0.8%
Hydraulic motors		ItalyMF090W
Reducer		Italy577L3131AX1A
