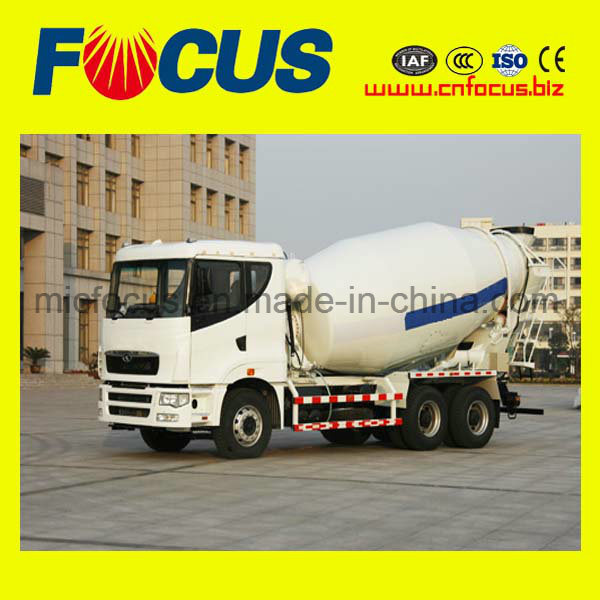

12m3 Concrete Mixer Truck for Sale

12m3 Concrete Mixer Truck for Sale


Product Description
Description of FOCUS concrete transit mixer:

1. HINO, HOWO and other chassis are available in FOCUS concrete mixer truck you can also use our drum tank on your Chassis.
2. Volume of mixer tank: 3/4/6/8/9/10/12/14cbm, Drive: 4X2, 6X4, 8X4.
3. International famous brand hydraulic drive fits are adopted in our Concrete mixer truck;
4. Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
5. Multi-points control system enables the concrete mixer truck operation to be easier, safer and more comfortable;




Main features of FOCUS HOWO transit mixer?

1. Pump, motor and reducer in FOCUS concrete mixer truck are all original imported America static pssure driving system with big driving torque and high efficiency.
2. imported hose and connector are separately from Germany EMB and Italy MANULI.
3. Hose buckling device is totally from Germany HYDAC.
4. Stirring vat auto-welding improves FOCUS concrete mixer truck production efficiency and makes welding quality finer.
5. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.



FOCUSconcrete mixer truck technical data:

Model		8m3		9m3		10m3		12m3		14m3
Tuck	Chassis	HOWO		HOWO		HOWO		HOWO		HOWO
	Length(mm)	8550		9200		9800		10150		10150
	Width(mm)	2490		2490		2495		2496		2496
	Height(mm)	3800		3800		3830		3900		3960
	Weight(kg)	25000		25000		31000		31000		31000
	Load weight(kg)	12600		13000		15650		16370		16700
	Max.speed(kg/h)	75		72		90		90		50
	Oil consumption(L/100km)	32		34		38		38		38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(KW)	247(2200r/min)				247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7		17.05		19.65		20.1
	Mixing volume(m³)	8	9		10		12		14
	Drum rotation(r/min)	0-14
	Discharge speed(m³/min)	≥3
	Slump(m)	100-230
	Surplus rate(%)	<1
	Water tank vol.(L)	400

Model		8m³	9m³	10m³	12m³	14³
Truck	Chassis	HINO	HINO	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(kg)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14

Model		3m3	4m3	6m3
Tuck	Chassis	FOTON /HOWO	FOTON /HOWO	FOTON /HOWO
	Length(mm)	6765	7705	8715
	Width(mm)	2499	2500	2496
	Height(mm)	3420	3700	3850
	Weight(kg)	15990	18570	25000
	Load weight(kg)	7805	9860	11770
	Max.speed(kg/h)	80	80	90
Engine	Engine model	YC4D130-33	YC6J190-33	WD615.69
Working device	Drum volume(m³)	5.05	6.15	8.7
	Mixing volume(m³)	3	4	6
	Drum rotation(r/min)	0-12	0-12	0-12
	Discharge speed(m³/min)	≥3	≥3	≥3
	Surplus rate(%)	<0.5	<0.5	<0.5
	Water tank vol.(L)	400	400	400

Company profile

	Business Type:	Trading Company
	Main Products:	concrete batching plant,concrete mixer,concrete pump,truck mixer,tower crane
	Location:	Henan, China (Mainland)
	Year Established:	2013
	Year start exporting:	2013
	Number Of Employees:	51 - 100 People
	Total Annual Sales Volume:	Above US$100 Million
	Main Markets:	Domestic Market, Oceania, Africa, Mid East, South Asia
	Average Lead Time:	15 Day(s)
	Established in 1982, we are professional manufacturer of high quality ready mixed concrete batching plant, asphalt mixing plant, mobile concrete mixing plant, concrete mixer truck, concrete pump, concrete boom pump, concrete pump truck, tower crane, construction hoist, cement screw conveyor, cement silo, cement conveyor, cement bag opener, etc. Our products have been distributed in various places in China and over 50 countries and regions in the world. With the increasing psence in domestic and overseas markets, we constantly focus our strength on R&D to ensure our leadership in the business. Covering an area of 65,000sqm with 900 workers, 40 engineers, 102 expertise staff members and 80 management personnel, we provide our clients around the world with reliable, well-engineered, state-of-the-art process solutions. Our products have passed ISO9001:2000 Quality Management System Certification and many other tests by clients, governments and third party institutes. With all those honors, our passion on new technology and innovation will never be ceased. Our endeavor for continuous 5-star service will never be halted. We stand for new product ideas and courageous vision of the future. We stand for our never-stopping dedication and devotion to your construction equipment solutions. We focus on your project needs.
