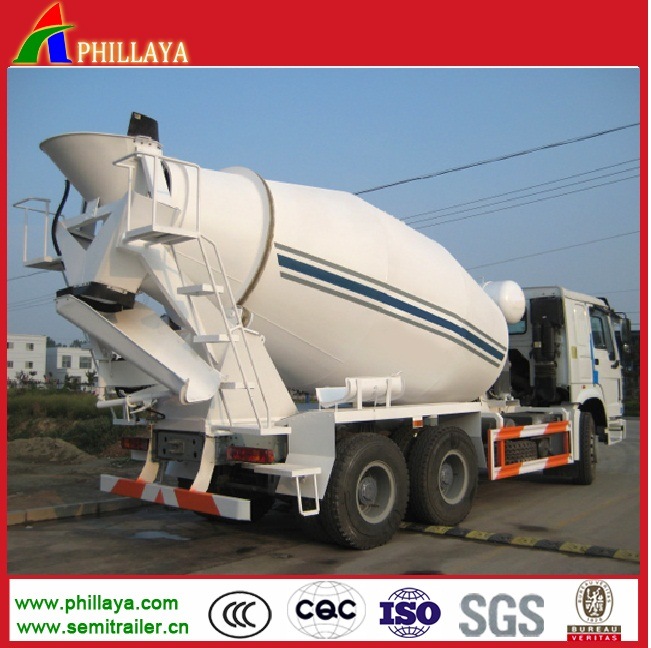

Phillaya Made Concrete Bulk Tank Semi Trailer / Cement Mixer Truck

CONTACT:
Miss Allison --- Exporting Manager Of Phil-la-ya Vehicle.
Mobile: +86 185 5320 5201
Office Tel: +86 532 83957810
Web: www.phillaya.com


FUNCTIONS

1. This series concrete mixer semi trailers are mainly used in construction transportation for concrete/ cement.
2. The volume varies widely from 5cube meters to 40 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker body is made from Q235B carbon steel.




BRIEF INTRODUCTION TO OUR FACTORY

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,

Majored in semi trailer, special vehicle manufacture, our products are mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries



SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs



DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.




WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT. WISH THE LONG-NEW MUTUAL BENEFIT & BUSINESS RELATIonSHIP CAN BE BUILT BY OUR JOINT EFFORTS

8CBM ConCRETE MIXER SEMI TANK TRAILER
Tare Weight		10800kg		Overall Length	9995mm
Overall Width		2495mm		Overall Width	3780mm
Tank
Capacity			8CBM
Mixing Tanker Sloping Angle			14, 12,10 degree
Mixing Tanker Revolving Speed			12-20 (r/min)
Key Accessories
Engine			Diesel engine or electrical motor
Hydraulic Pump			American Eaton or Italian TOP hydraulic pump
Hydraulic Motor			American Eaton or Italian TOP hydraulic motor
Gear Box			American Eaton or Italian TOP gear box
Chassis	Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm.
Axles	2 axles, Fuwa
Suspension	Mechanical suspension/
Leaf Spring	8-piece leaf spring
King Pin	2 Bolt-in King Pin
Landing Gear	Two-speed, manual operating, heavy duty landing gear
Tyre	11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Others: Other Size/dimension or configurations will be available by customeri-zation.
