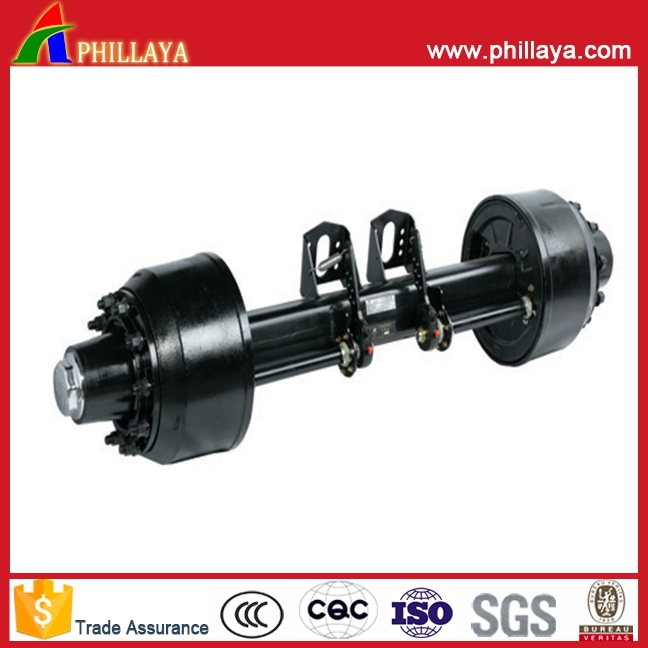

12t 14t 16t truck Semi-Trailer Axle

Model

105 (km/h) Max. Capacity (kg)

"S" Cam Brake Seriesφ x Width (mm)

Track TR (mm)

Spring Seat InstallationLM (mm)

Axle Beam (mm)

Center distance of chamberGM (mm)

Studs (mm)

P.C.D. (mm)

φ H (mm)

Total Length LP (mm)

Recommended Wheel

Weight (kg)

Note

PLY01

10,500

S 420×180

1820

≤435

()127

368

10xM22x1.5 ISO

335

281

~2165

7.50V-20

~363

(Outer) HM518410/45 (Inner) HM518410/45

PLY02

10,500

S 420×180

1820

≤435

()127

368

10xM20x1.5 JAP

285.75

221

~2165

7.50V-20

~359

PLY03

10,500

S 420×180

1820

≤435

()127

368

10xM22x1.5 ISO

285.75

220.1

~2165

7.50V-20

~356

PLY04

13,000

S 420×180

1840

≤455

[]150

390

10xM22x1.5 ISO

335

281

~2185

7.50V-20

~368

(Outer) HM518410/45 (Inner) HM518410/45

PLY05

13,000

S 420×180

1840

≤455

[]150

390

10xM20x1.5 JAP

285.75

221

~2185

7.50V-20

~363

PLY06

13,000

S 420×180

1840

≤455

[]150

390

10xM22x1.5 ISO

335

221

~2185

7.50V-20

~361

PLY07

15,000

S 420×180

1850

≤455

()127

396

10xM22x1.5 ISO

335

281

~2185

8.00V-20

~398

(Outer) HM518410/45(Inner) HM220110/49

PLY08

15,000

S 420×180

1850

≤455

[]150

396

10xM22x1.5 ISO

335

281

~2185

8.00V-20

~383

PLY09

16,000

S 420×220

1850

≤455

()127

354

10xM22x1.5 ISO

335

281

~2185

8.00V-20

~423

PLY10

16,000

S 420×220

1850

≤455

[]150

354

10xM22x1.5 ISO

335

281

~2205

8.00V-20

~425

PLY11

20,000

S 420×220

1850

≤455

[]150

354

10xM24x1.5 ISO

335

281

~2270

8.50V

Trailer axle features
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance pmium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.

Productsfeatures:
1.Specialheat-treat,low alloysteelaxlebeam,ithasthevituesofgoodsynthetic
performance,strongloadabilityandlowerselfweight;
2.Highqualityalloysolidisertedspindle,throughwholyheattreatment,provide
superiorfatiguecapacity;
3.Highperformancepmiumnon-asbstosbrakelinings,extendservicelife;
4.EasyforABSinstallation;
5.Camshaft,machingwithspecialseals,canensurenoentryofthegreaseintothebrake
drum,moresafety;
6.NewtightfithubcaphaveOrings,highpropertyforsealing;
7.GreaselubricantissuppliedbyMobilthatlengthensthetimeoffreemaintenance;
8.FullrangeofstudfixingsuchasISO,BSF,andJAP,itcanmeettherequirementsofvarious
wheelrims.


Noted:

1. Material: Steel
2. Drum, Brake Lining 420x180mm, Track TR 1840mm
3. Axle Beam you can choose: 150*150, 127*127, Φ 127
4. Product type: American, Germany and Europe type
5. Max. Capacity you can choose: 12T, 13T, 14T, 15T, 16T
6. Stud: 10*M20*1.5

ourafter-saleservicealsocouldbeguaranteed,
customizedisavailable.
Customeralsocansendusyourspecificationsordrawingsyouneed.
Certification:ISO9001:2000/TS16949
Highqualityandbestprice

If you have any requirement, please tell us, we can produce according to drawings of customers.
