8- 12 M3 cement mixer truck / Concrete Mixer Truck

8- 12 M3 cement mixer truck / Concrete Mixer Truck

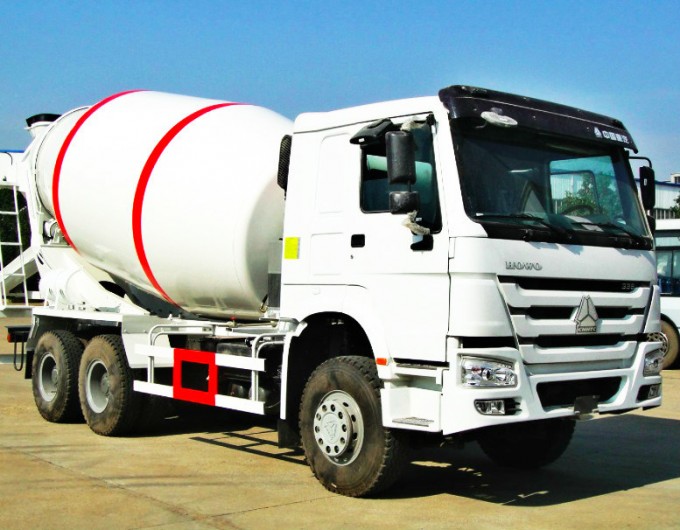

HOWO 6x4 Concrete Mixer Truck

We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.

From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the responsibility every moment.

There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!

Engine 371HP
Emission standard Euro II
Gear box Manual operating, HW19710
Front Axle HF9 Disc brake
Rear Axle HC16, speed ratio 4.8
Tyre 12R22.5

Mixer Drum
Volumn 10CBM
Water Supply Patterns Air Pressure
Tilt 11-13
Hydraulic Reducer, Motor, Pump Made in Europe/United State

MAIN DEscriptION
Overall Dimensions	9780mm*2496mm*3990mm(L*W*H)
Tare Weight	13950kg	Payload	28000kg
Front Overhang	1500mm	Rear Overhang	2880mm
Wheelbase	4000mm+1400mm	Track (F/R)	2022mm/1830mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1257N4048W, driving type 6x4
Cab	HW76, left hand drive, air-conditioner, one sleeper
Engine	SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission	HW19710, No. of speeds: 10 forward 2 reverse
Steering	German ZF8098, turning system pssure 18MPa
Rear Axle	HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compssed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	10cbm
Water Tank Volume	440L
Hydraulic Pump	Brand: ARK, Italy
Motor	Brand: ARK, Italy
