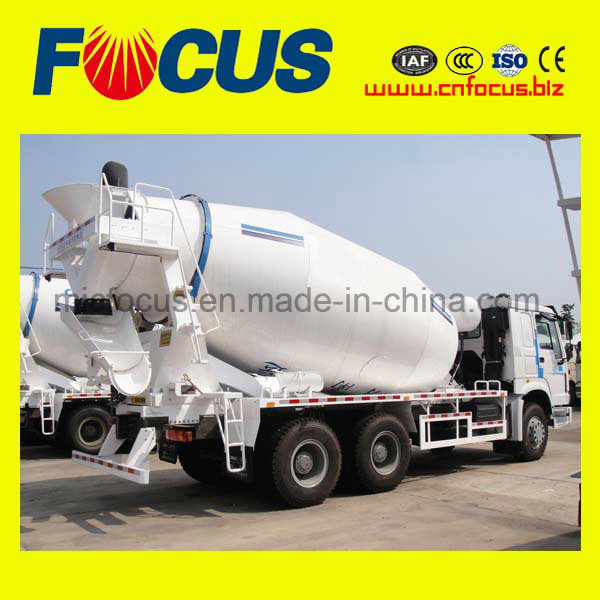

8m3 HOWO Concrete Mixer Truck for Sale

8m3 HOWO Concrete Mixer Truck for Sale


Product Description
Sizes of LHD and RHDSinotruck HOWO 6x4 Concrete Truck Mixer for Sale:
8cbm concrete truck mixer,9cbm concrete truck mixer,10cbm concrete truck mixer,12cbm concrete truck mixer,
Main features of FOCUS LHD and RHD SINOTRUK 8m3 HOWO 6x4 concrete transit mixer with factory price:
1.Oil tank and radiator ofSINOTRUCK HOWO 6x4 concrete truck mixersare imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our transit mixer.
2.Pump, motor and reducer inSINOTRUCK HOWO 6x4concrete truck mixersare all original imported AMERICA static pssure driving system with big driving torque and high efficiency.
3.Stirring vat auto-welding improvesSINOTRUCK HOWO 6x4concrete truck mixerproduction efficiency and makes welding quality finer.
4.Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our transit mixer.
5.Fault indicator ofSINOTRUCK HOWO 6x4concrete truck mixerfor the transit mixer can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
6.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.



FOCUSconcrete mixer truck technical data:

Truck name		HOWO Concrete mixing truck
Size parameters	Dimension(L×W×H)(mm)	8715*2496*3800
	Wheelbase(mm)	3600+1350
	Front overhang/rear overhang(mm)	1500/2240
	Approach angle/departure angle(°)	16/26
	Mix round cubage (m 3 )	8 m³
	Obliquity of the drum( 0 )	15/13
Weight parameters	Gross Vehicle weight(kg)	12800
	Permissible loading capacity	12070
	Vehicle + loading capacity (kg)	25000
	Axle load(kg)	7000/18000
Work parameters	Rotary speed of the drum(r/min)	0-18
	Input speed(m 3 /min)	≥3
	Output speed(m 3 /min)	≥3
	The rate of remaining	≤1%
	Supply mode	Atmospheric type
	Volume of the water tank	300L
Hydraulic system	Pump	import PARTS
	Motor	import PARTS
	Retarder	import PARTS
Engine	Model	WD615.69
	Rated engine power(kw/rpm)	336HP
	Max. torque N.m/(r/min)	1280/1300-1600
Gear Box	Model	HW13710
Brake system	Service brake	Dual circuit brake
	Park brake	Spring energy air cut brake on front shaft and rear axle
other	Max. speed(km/h)	90
	Tire	12.00R20
	drive form	6×4

Model		8m³	9m³	10m³	12m³	14³
Truck	Chassis	HINO	HINO	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(kg)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14

Model		3m3	4m3	6m3
Tuck	Chassis	FOTON /HOWO	FOTON /HOWO	FOTON /HOWO
	Length(mm)	6765	7705	8715
	Width(mm)	2499	2500	2496
	Height(mm)	3420	3700	3850
	Weight(kg)	15990	18570	25000
	Load weight(kg)	7805	9860	11770
	Max.speed(kg/h)	80	80	90
Engine	Engine model	YC4D130-33	YC6J190-33	WD615.69
Working device	Drum volume(m³)	5.05	6.15	8.7
	Mixing volume(m³)	3	4	6
	Drum rotation(r/min)	0-12	0-12	0-12
	Discharge speed(m³/min)	≥3	≥3	≥3
	Surplus rate(%)	<0.5	<0.5	<0.5
	Water tank vol.(L)	400	400	400

Company profile

	Business Type:	Trading Company
	Main Products:	concrete batching plant,concrete mixer,concrete pump,truck mixer,tower crane
	Location:	Henan, China (Mainland)
	Year Established:	2013
	Year start exporting:	2013
	Number Of Employees:	51 - 100 People
	Total Annual Sales Volume:	Above US$100 Million
	Main Markets:	Domestic Market, Oceania, Africa, Mid East, South Asia
	Average Lead Time:	15 Day(s)
	Established in 1982, we are professional manufacturer of high quality ready mixed concrete batching plant, asphalt mixing plant, mobile concrete mixing plant, concrete mixer truck, concrete pump, concrete boom pump, concrete pump truck, tower crane, construction hoist, cement screw conveyor, cement silo, cement conveyor, cement bag opener, etc. Our products have been distributed in various places in China and over 50 countries and regions in the world. With the increasing psence in domestic and overseas markets, we constantly focus our strength on R&D to ensure our leadership in the business. Covering an area of 65,000sqm with 900 workers, 40 engineers, 102 expertise staff members and 80 management personnel, we provide our clients around the world with reliable, well-engineered, state-of-the-art process solutions. Our products have passed ISO9001:2000 Quality Management System Certification and many other tests by clients, governments and third party institutes. With all those honors, our passion on new technology and innovation will never be ceased. Our endeavor for continuous 5-star service will never be halted. We stand for new product ideas and courageous vision of the future. We stand for our never-stopping dedication and devotion to your construction equipment solutions. We focus on your project needs.
