| 4.0m3(rotating) Concrete Mixer Truck | ||
Diesel engine | Model | SanyD03 |
| Total displacement cylinder number | 4330ml--4 cylinder inline | |
| Injection | Direct injection ,mechanical control | |
| Cooling system | Water--cooling,Dry air filter | |
| Max power | 75kw (102hp) | |
| Max torque | 390nm@2800 r minute | |
| Electrical system | Alternator | 28V--1500WA (53.5A) |
| Battery | 2*12V--60AH (272A) | |
| Road Lighting System | ||
| Steering System: | 2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels | |
4*4 Four-wheel drive | Hydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed" | |
| Speed: | ||
| 3forward gears | 2 reverse gears | |
| The first gear: 0--7kmhour | 0--7kmhour | |
| The second gear: 7--20kmhour | 7--20kmhour | |
| The third gear: 20-25kmhour | ||
Axle | Front axle, steering ,Wheel side decelerationAxle,the axle is equipped with a planet reduction gear | |
| Rear axle ,Swing ( ± 28° ) , the axle is equipped with a planet reduction gear | ||
| Tires | Tyre:16-70-20PR, max load:5150kg,450kPa, | |
Brake | The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pssure type parking brake, the front axle is equipped with an internal hub. | |
| Water Supply System | "Self-priming" 24v large capacity pump,with fast absorption function. | |
| Max flow: | 90Lminute | |
| Two water tanks connected with each other and opposite layout, Total capacity | 2*410L | |
| The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water. | ||
| Sit on the side of the driver's seat to enable the pump | ||
| Equipped with high pssure pump to flush vehicle | ||
Mixing And Unloading | Double cone cylinder with double spiral stirring screw and middle convex bottom | |
| Drum geometric capacity: | 6100L | |
| Drum rotation speed: | 15rminute | |
| Concrete Production: | 4.0cbmtank | |
| The counterforce rack mounted on the ball saddle can be hydraulically rotated at 180oand automatically locked by a hydraulic brake | ||
| The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump. | ||
| The roller is raised to a horizontal position by 2 double acting jacks | ||

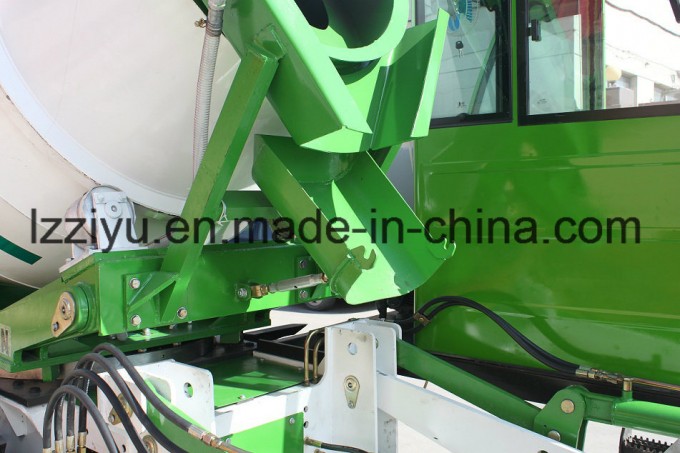

| Removable chute can be guaranteed to be unloaded directly through the hopper.It can rotate at 180o, but can not be synchronized with the tilting operation of the mixing drum | ||
| Removable chute can be guaranteed to be unloaded directly through the hopper. | ||
| As a standard configuration , 2 chute extensions are provided. | ||
Equipment Hydraulic System | Gear Pump: | PERMCO Brand |
| Maximum Flow: | 6350Lminute | |
| Maximum Pressure: | 16MPa | |
| 3 handle multi-function joystick | ||
| Aluminum heat exchanger for cooling hydraulic oil | ||
| Open oil inlet,hydraulic oil filter can be replaced from outside | ||
| Load | The loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function | |
| Capacity: | 700L | |
| Be filled with6times | ||
| Operating Room | Closed operating room with heatingcooling system inclined front window. | |
| Humanized seat with flexible suspension and height adjustment function | ||
| Maintenance filler | Fuel tank: | 135L |
| Total capacity of hydraulic system: | 240L | |
| Machine oil: | 16L | |
Weight | Operating weight: | 8800kg |
| Maximum total weight: | 18400kg | |
| Maximum load weight: | 9600kg | |
| Overall dimension | 8200*2900*3550mm | |
