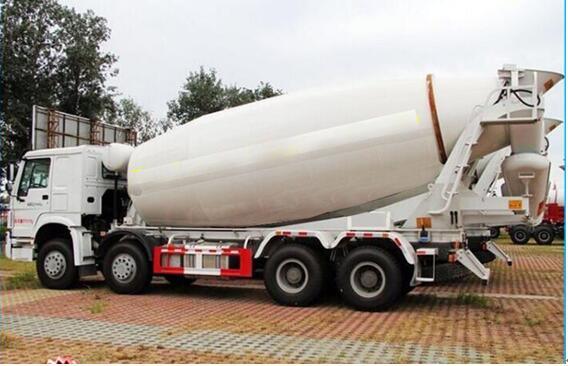

HOWO Truck 8*4, 14m3 Concrete Mixer Truck for Sale

3 Axles 14cbmConcrete Mixer Truck
Model Number: WHCMT001
Certification: CCC, ISO9001, SGS
Experience: more than 15 years of production & export experience
Be designed as per your requirements.
MOQ: 1 unit
Delivery time: within 15 days after we received your payment.
Quality guarantee: 12 months
We accept 100% inspection, warmly welcome to our factory at any time.

The follow technical data for your reference.

Weight Parameter	Complete Vehicle Kerb Mass	15880kg
	Maximum authorized total mass	31000 kg
Dimension Parameter	Length	10800
	Width	2496
	Height	3800
	wheelbase(mm)	1950+3225+1350
	MinimumGround Clearance	315mm
Recommended Configuration	Engine Type	D10.34-31,D10.38-30,D12.34-30,D12. 38-30,WD615.95E,WD615.96E
	Rated power(kW)/Rev(r/min)	247/1900,277/1900,245/2000,275/2000,245/2200,274/2200
	Maximum Torque(N*m)/Rev(r/min)	1490/1200-1500,1590/1200-1500,1470/1100-1500, 1650/1100-1500,1350/1200-1600,1500/1200-1600
	Transmission	HW10,HW12,HW16
	Clutch(mm)	430
Steering	Type	TAS85
frame	Dimensions(mm)	300x90X8+6+8
Suspension	thenumberofleafspring	11/11/12
Axles	Frontaxle	7500kg
	Rearaxle	13000kgdoublereductiondrivingaxles
	Ratio	5.263
Tyres	Type(Standard)	11.00-20,11.00R20,12.00-20,12.00R20
Fueltank	Tankcapacity(L)	400
	Material	Aluminum
Cab	Equipments	Longflathead,1sleeper,2-3persons
Mixingtank	Mixingvolume	14CBM
Landing gear	Type	JOST brand or china brand two-speed, heavy duty landing gear 28T
Hydraulic pump	Type	Italian top hydraulic pump or china brand
Braking system	Type	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

Other Information:

Brand Name:	WH or per your request
Packaging	Nude
Shipping	Bulk carrier or RORO or Container
FOB port	Tianjin port, China
Payments terms:	TTor LCat sight
Place of Origin:	Shandong, China (Mainland)

Company Information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. Thefactoryis located in the special vehicle production base -- Liangshan,China.
Our company'smain products are as below:Low bed semi trailer (including the trailer that can be extended to 53m)Containertrailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil/fuel tank trailerVan / box semi trailersemi trailer accessories. At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you thehigh quality trailers and servicing more intimately. You can inquiry usfor a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.
Workshop:


Shipping:


FAQ:
Whyus?
1- Since 1996, With 20yrs experience
2-2YearsGuaranteeforallthethebeamoftrailers
3-Reliability,SafetyandEconomicTransportsolutions.
4-CustomProductionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-StockTrailersandimmediatedelivery
7-After-saleserviceavailable,Emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl
1-ForEachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmode.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Please feel free to contact and looking forward to your visiting factory

Contact information:
Ms. Betty Zhang
Mobile: +86 158 0669 1798
Web: www.weihuavehicle.com
