| Parameter | |||||||

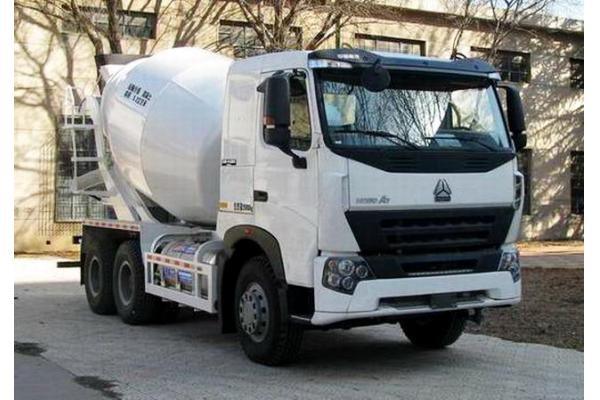

| SINOTRUK HOWO A7 6X4 336HPwith 10m3/ 8m3 Concrete Mixer Truck | |||||||
| Mixer Tank | Mixing volume | 10m3 /8m3 | |||||
| Geometric volume of thedrum | 15.5m³ | ||||||
| Pump | Eaton 54 | ACA542337R | origin:USA | ||||
| Motor | Eaton54 | HHD543321 | origin:USA | ||||
| Decelerator | PMP6.5sp | origin:ITALY | |||||
| Material of Tank | material of the drum: JJ520, special high-strength wear-resistant plate for mixer truck produced by Shougang | ||||||
| Tanker Thiness | body thickness:5mm | head thickness:8mm | |||||
| Material of blade | material of the drum: JJ520, special high-strength wear-resistant plate for mixer truck produced by Shougang thickness:4mm, with the welded steel pventing abration | ||||||
| Material of the vice frame | 16Mn Seamless Rectangular Pipe thickness:8mm Cross-section dimensions120*80mm | ||||||
| Drum Inclination: | 15 degrees | Filling rate | 64.50% | ||||
| Drum working speed : | 0-18r /min | discharging the residual rate: | <1% | ||||
| ater tank volume: | 400l | Air pssure system | |||||
| GVW25000kg | Driving Type 6x4 | ||||||
| Model | ZZ5257GJBM3847 | ||||||
| Engine | Model | WD615.69 | |||||
| Horsepower | 336hp | ||||||
| Maximum output Kw/r/min | 247/2200 | ||||||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection | ||||||
| Displacement | 9.726L | ||||||
| Make SINOTRUCK (CNHTC), Euro II emission standard | |||||||
| Cab | SINOTRUK A7-W cab,right hand driving ,with air conditioner single bunk,new type seat,adjustable steering wheel | ||||||
| Option:color; Wind guide cover | |||||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||||||
| Transmission | SINOTRUK HW13710transmission ,10 forward and 2reverse | ||||||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brake | ||||||
| Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance | ||||||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle STR hub-reduction with differential locks between wheels and axles enforced STRaxle | ||||||
| Brake System | Service brake:dual circuit compssed air brake | ||||||
| Parking brake (emergency brake):spring energy compssed air operating on rear wheels | |||||||
| Auxiliary brake:engine exhaust valve brake | |||||||
| Tyres | 12.00R20radial tyrewith 1Spare tire | ||||||
| Electrics | Operating voltage:24V,negative grounded | ||||||
| Starter:24V,7.5 Kw | |||||||
| Alternator:3-phase,28V,1500 W | |||||||
| Batteries:2x12 V,165 Ah | |||||||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | |||||||
| Oil Tank | Square type-300Lfuel tank | ||||||
| Dimensions | Overall length xwidth xheight 9300x2496x3998mm | ||||||
| Wheel base3825+1350mm | |||||||
| Weight (kg) | Kerb weight13360 | ||||||
| Gross vehicle weight25000 | |||||||
| Performance | Maximum drving speed (km/h)78 | ||||||
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer | ||||||
| be suitable for long distance transportation of ocean and inland. | |||||||
| The manufacturer reserves the right of technical alteration / change for better improvement without prior notice | |||||||
