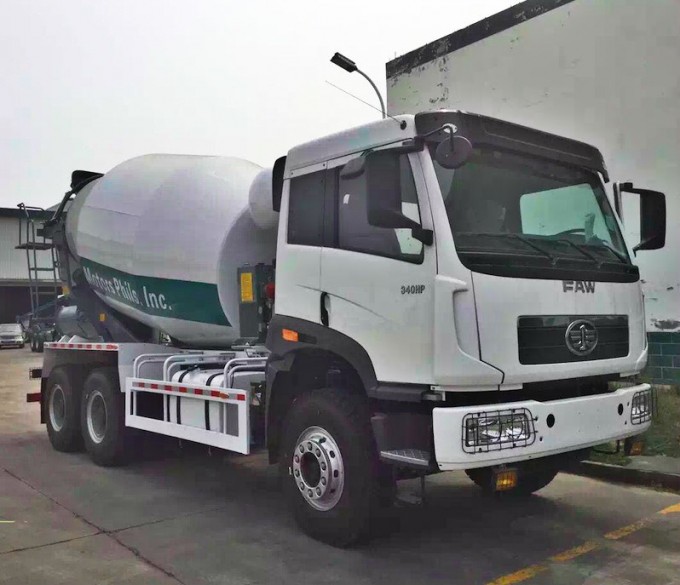

Faw 9cbm Concrete Mixer Truck

FAW 9cbm concrete Mixer Truck

We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.

From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the responsibility every moment.

There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!

Quality heavy truck designed from military manufacturer.
Reliable quality with competitive price.

Power engine: Weichai,
Gear box: Eaton fuller, fast
Cabin: FAW J5P with A/C
Emission: Euro 2, 3, 4,
STEYER design platform. INTERNATIonAL QUALITY STANDARD

Cabin
Air deflector, air-condition, single or double sleeper, USB application,


Drive type
Left hand / right hand, 6X4, 8X4
Engine: WEICHA I(WP series, WD series)

Type
Diesel 4-stroke direct injection engine,
6-cylinder in line with water cooling, turbo-charging& inter cooling.

Number of cylinder
Inline six-cylinder
BOSCH oil pump

Displacement
5.762L, 11.596L

Emission
Euro 2, 3, 4

Max torque (kg. M/rpm)
1 070NM-2000NM@1400-1600rpm

Type
φ 430 diaphragm construction

Single-plate dry Clutch, mechanically operating with air assisted

Gear box, Transmission

Model
FAST FULLER(recommendation), ZF 8098,

Type
9, 10, 12, 16 speeds AS ( Automatic Synchronizer )

Gear box
Mechanical form, Remote control device

Front axle

Type
STYER

Permissble load
Kg /axle
65 00 kg, 7500kg

Rear driving axle

Model
STYER driving axle

Type
Pressed axle housing, single/double reduction with planetary wheel reduction.

Permissble load
Kg /axle
1 3000kg, 16 000 kg

Track
1800/1860

Transmission ratio
4.42 4.80 5.73 6.72 7.49 8.40 9.94

Tyre:

Bias/Radial TYRE 315/80R22.5 / 12.00R20

Braking sytstem(Option)ABS,: ASR

Service brake
Dual circuit pneumatic brake

Parking brake
Spring energy, compssed air operating on rear wheels

Hanging

Type
FR/RR
Spring plate, Lug/Multi-leaf spring

Electric equipment

Operating voltage
24V, negative grounded

Battery voltage/capacity
12V/135A, 165A

Turning technology
ZF8098 hydraulic pssure steering system

Oil Tank: 380L

Other option: PTO, more than 20 colors' surface, strengthen leaf spring. Mainly as your requests.

Model		concrete mixer truck
Tank volume		8,9,10 cbm
tire		12R22.5
capacity		30 tons
