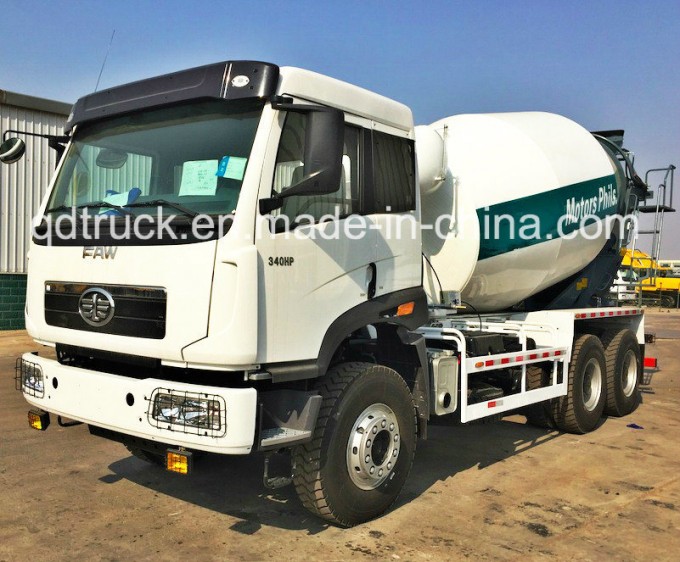

FAW 3-16 Cubic Concrete Mixer Truck

Faw 12-16 Cubic Concrete Mixer Truck

We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.

From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the responsibility every moment.

There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!


Model: CA5310GJBJS306
Option drive type: 8X4
Chassis: FAW J5P
Cab: J5P widened and lengthened normal-roof
Transmission (gear box): Fuller

Clutch: Φ 430 Diaphragm type
Steering: TRW technology
Type: Hydraulic power steering
Front axle: MAN technology 7.5ton
Rear axle: Steyr extra strengthened 13 ton

Fuel tank: 300L, lockable
Tire: 12.00-20 Bias tire (10+1spare)
Rim: 8.5
Radiator: Enlarged
Kerb mass: 12830kg

Body(mixer, drum):
Pump and motor: Eaton made in America
Decelerator: POP made in Italy
Max. Diameter: 2305mm

Volume: 19.6CBM
Capacity: 12CBM
Slope(° ): 10
Rotating speed: 0-18 r/min
Water Tank: 400L
Discharged remain ratio: <0.2%
Tank capacity: 12-14m3.

TechnicalParameters

The total mass	31000	Curb Weight	14800
Rated the quality of	10005,10070	Chassis Model	CA5310GJBP1K2T4
Dimensions(mm)	9950,9650*2500*3995	Wheelbase	4300+1350+1350
Number of axes	4	Axle load	7000/18000
Tire Specifications	11.00-20 16PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR	Number of tires	12
Emission standards	Euro2,3,4	Type of fuel	Diesel
Engine Model	Engine Manufacturer	Engine displacement	Engine power
WP10.380E32	WEICHAI	9726(ml)	279(kw)

System	Item	Reference Data
Parameters of mixing drum	agitation volume (m3)	4
	charging rate (m3/min)	≥2.8
	discharging rate (m3/min)	≥1.2
	residual rate (%)	≤0.5
	rotating speed of mixing drum (rpm)	0~12
Driving system	speed reducer	made in China
	hydraulic pump	made in China
	hydraulic motor	made in China
	radiator	made in China
Water supply	water tank volume (L)	400
	type of water supply	air pssure water supply
Control system	control mode	connecting rod control
structure features	1,mixing drum and mixer blade using special wear-resisting materialQ345, mixing drum material thickness is4mm,mixer blade material thickness is3mm.
	2, material of blowpit and feed hopper scaleboard is just the same as the mixing drum;
	3,humanizing operating system,connecting rod operation,concise safe and reliable;
	4,using imported brand-name hydraulic system;
	5,flushing water back control;
	6,product with quick discharging, no residual
